R120,400.00
A three-sided built-in wood fireplace with a rise-and-fall glass door, giving an expansive view of the fire from multiple angles.
The price shown is the unit price. Please contact us for an installation quotation.
Explore more: 3-sided fireplaces

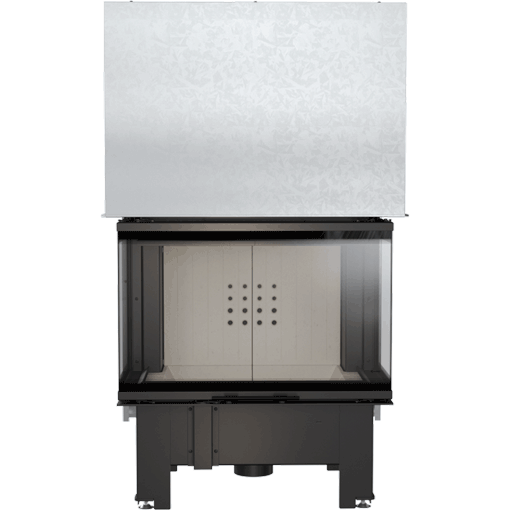

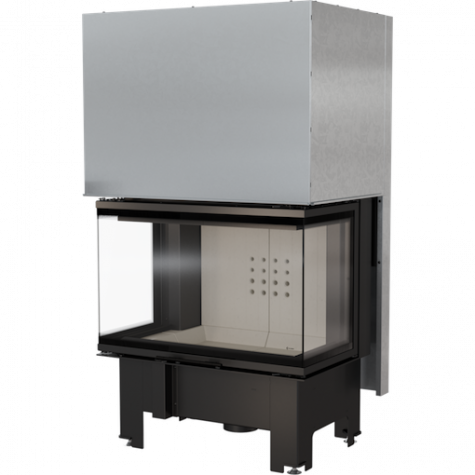

The Kratki NBC 10 is a modern 3-sided built-in wood-burning fireplace designed to provide an expansive view of the fire from multiple angles.
Its three-sided glass configuration makes the fire a prominent feature within the room, while the large rise-and-fall door provides convenient access to the combustion chamber.
The NBC 10 has a 10 kW nominal heat output and a heating output range of 5–13 kW. Kratki lists 83% thermal efficiency and an A+ energy class.
Unlike a conventional front-facing fireplace, the NBC 10 3-sided fireplace has glazing on three sides, providing a much wider view of the flames. It suits contemporary designs where the fire should stay visible from different areas of the room, and works well in open-plan interiors where the fireplace is an architectural feature rather than simply against a wall.
The NBC 10 is designed for seasoned wood and uses a closed-combustion system. Its 10 kW nominal output provides substantial heating capacity, with a heating range of 5–13 kW and a heating capacity of approximately 220–300 m³. Actual performance depends on insulation, room volume, glazing, building construction and heat loss.
The door has a smooth lift-up mechanism and can be raised when loading wood into the firebox, while the closed glass provides the large viewing area during normal operation.
The heat-resistant decorative glass can withstand temperatures of up to 660°C. An air-curtain system helps reduce soot deposition on the viewing glass. Combined with a large firebox, this gives the NBC 10 a strong visual presence in a contemporary interior.
The combustion chamber is lined with Kratki’s heat-intensifying ceramic material, which helps increase the temperature within the chamber and protects the steel firebox. The Kratki built-in fireplace also incorporates a ceramic drop-in base designed to provide additional space for burning wood coals.

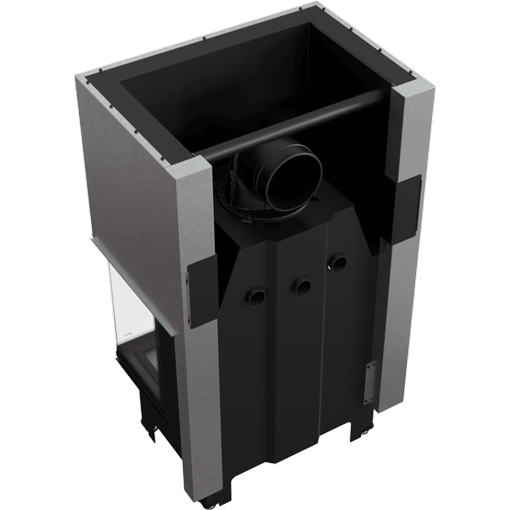

The NBC 10 is constructed from steel designed to withstand the high temperatures of wood burning. The NBC 800/400 configuration is approximately 87.6 cm wide, 147 cm high and 62.2 cm deep, weighs approximately 275 kg, and uses a 200 mm flue outlet and a 125 mm air intake.
The NBC 10 uses primary, secondary and tertiary combustion according to the current Kratki South Africa specification. The manufacturer documentation lists 83% thermal efficiency for the current NBC 800/400 configuration.
It is designed for seasoned deciduous wood with a moisture content of 20% or less. Using properly seasoned firewood supports efficient combustion and helps reduce excessive smoke and deposits within the chimney.

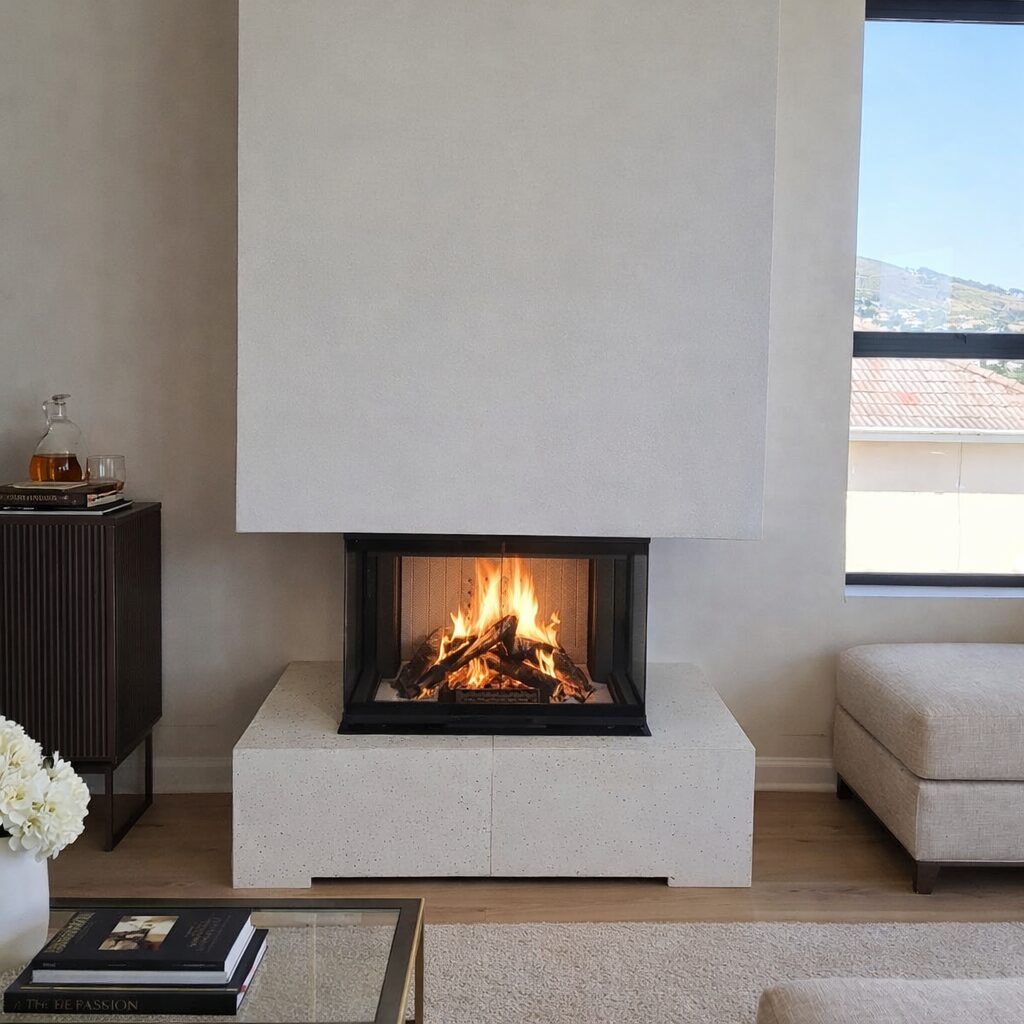

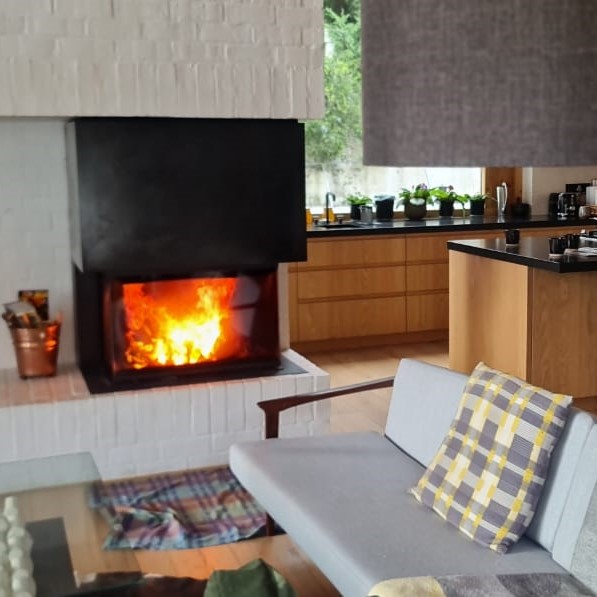

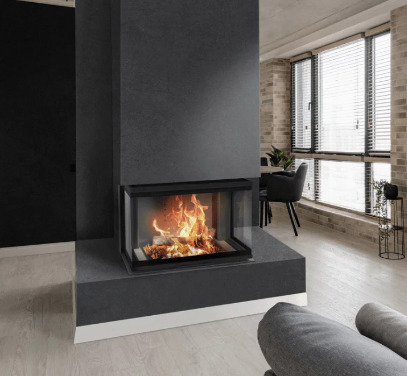

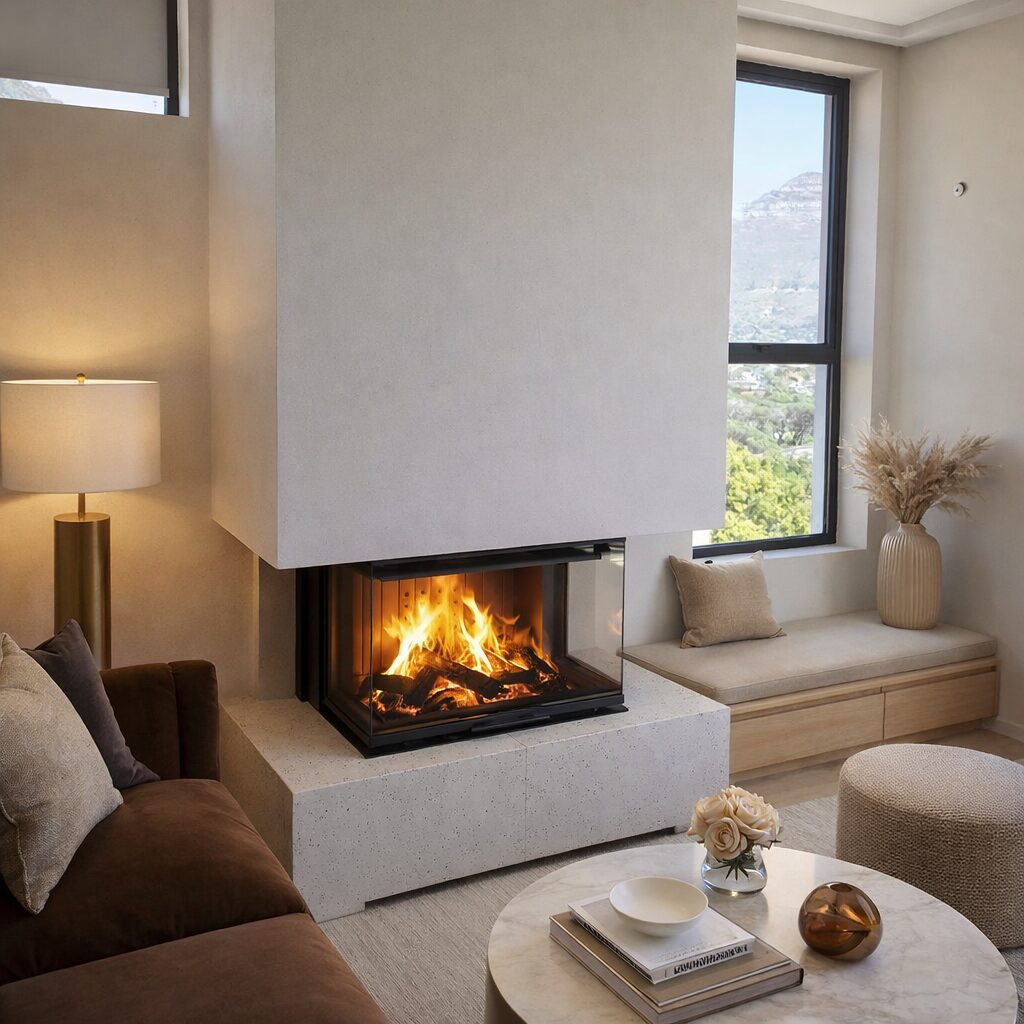

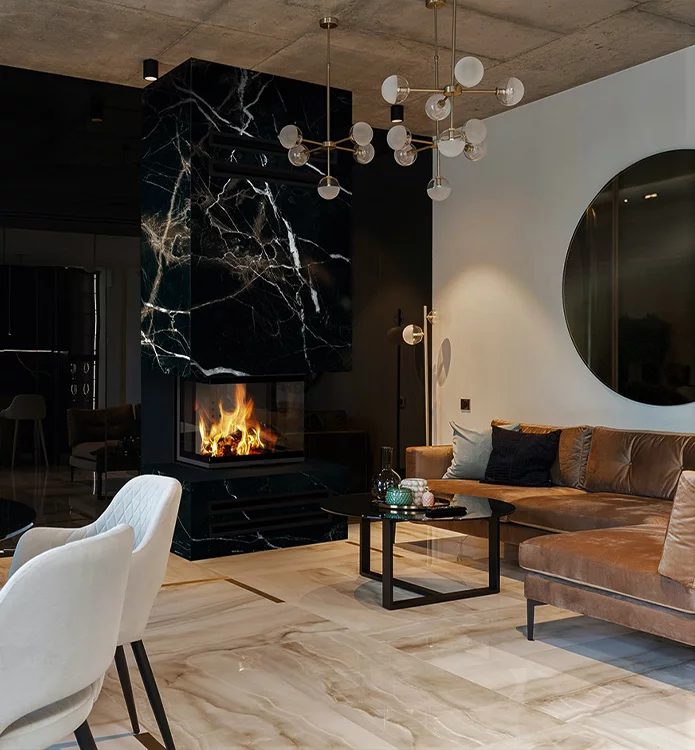

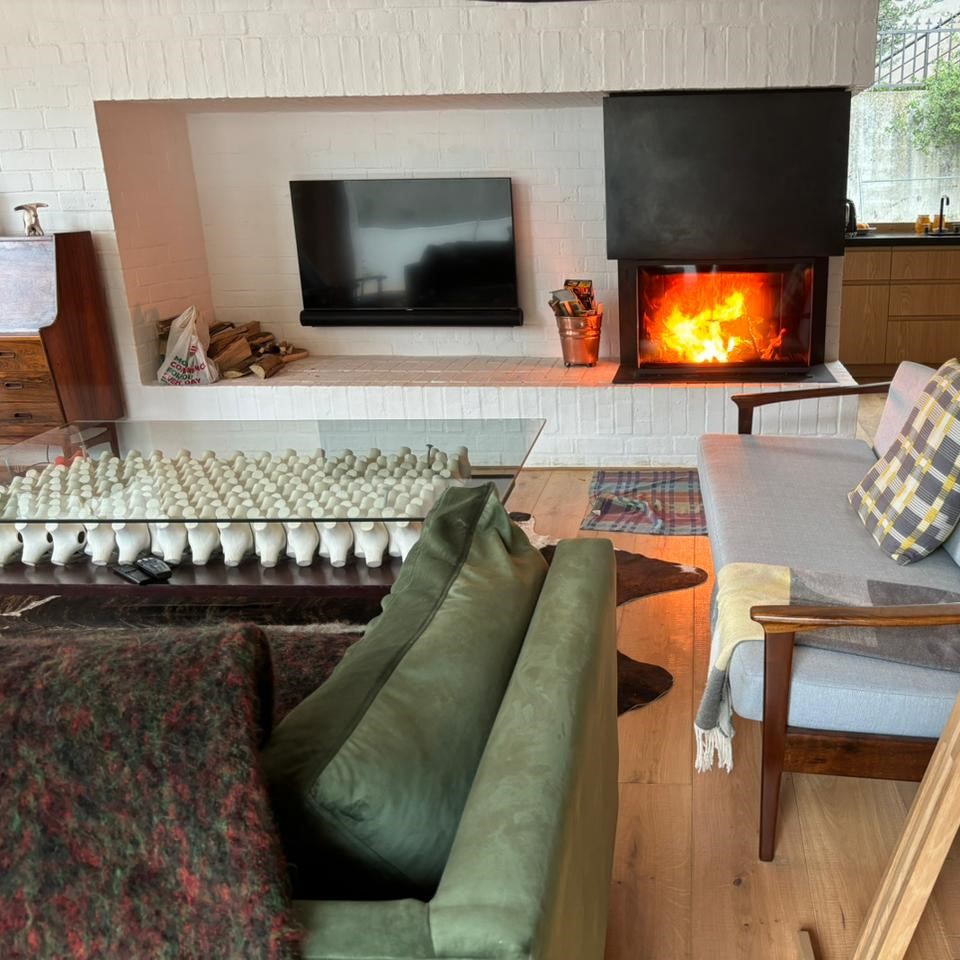

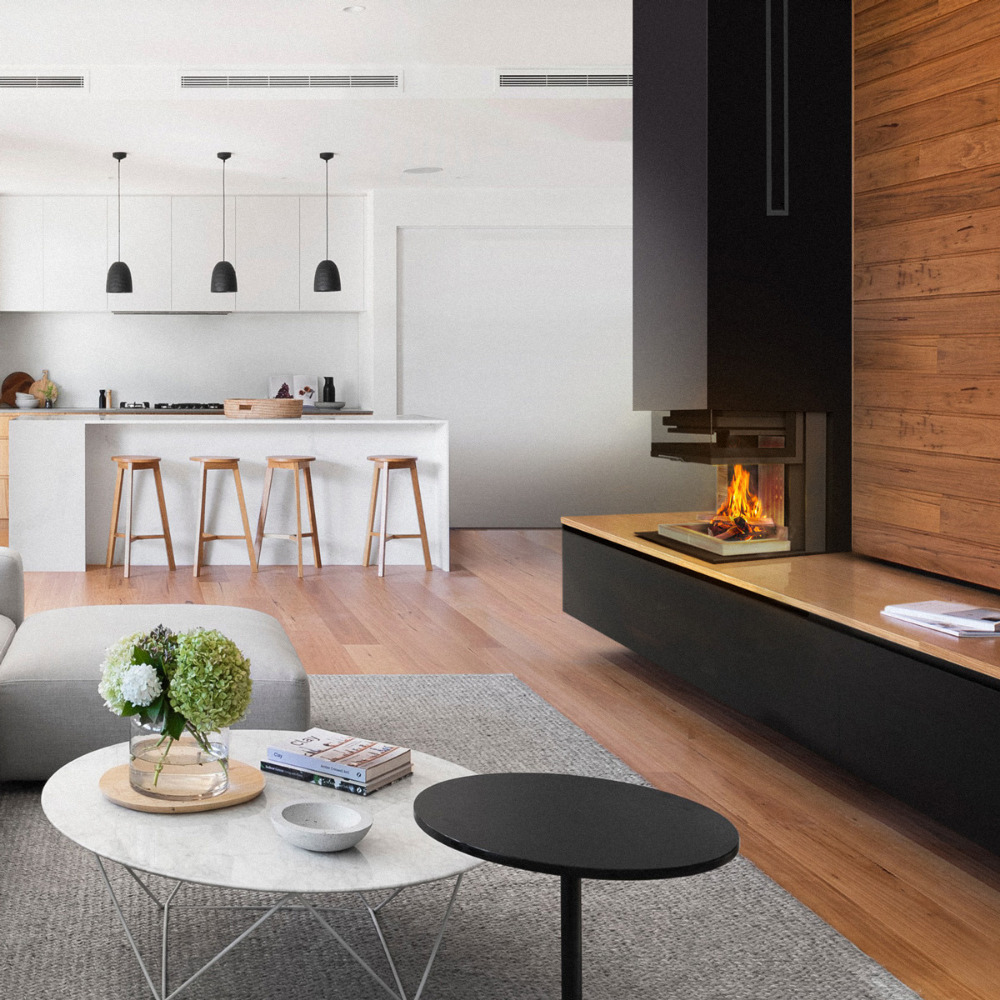

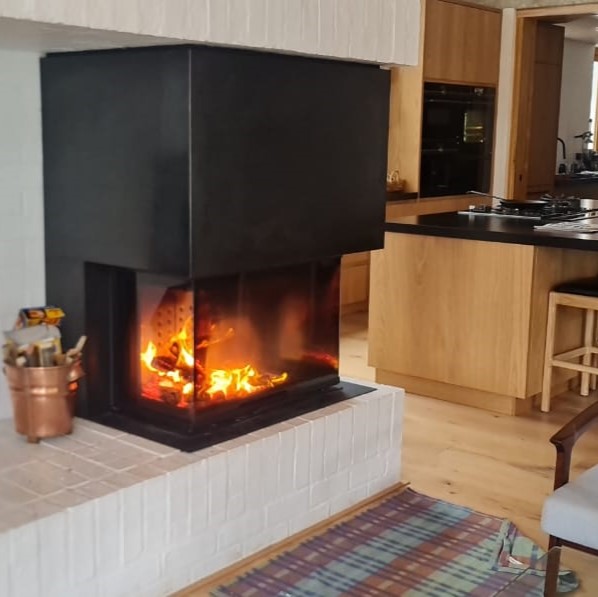

A 3-sided fireplace can provide a strong architectural focal point while allowing the fire to be viewed from different parts of the room. The Kratki NBC 10 can be incorporated into a purpose-built fireplace wall or used as a central architectural feature within a larger open-plan space.
The final installation must be designed around the manufacturer’s requirements for clearances, ventilation, combustion air and flue installation.
| Specification | Detail |
|---|---|
| Brand | Kratki |
| Model | NBC 10 |
| Fireplace type | Built-in 3-sided wood fireplace |
| Configuration | Three-sided lift-up |
| Fuel | Seasoned wood |
| Nominal heat output | 10 kW |
| Heating output range | 5–13 kW |
| Thermal efficiency | 83% |
| Energy class | A+ |
| Heat output for space heating | 10 kW |
| Material | Steel |
| Combustion technology | Primary, secondary and tertiary combustion |
| Combustion chamber | Heat-intensifying ceramic lining |
| Door | Rise-and-fall glass door |
| Flue diameter | 200 mm |
| Air intake diameter | 125 mm |
| Maximum log length | 300 mm |
| Flue gas temperature | 189°C |
| Width | Approximately 87.6 cm |
| Height | Approximately 147 cm |
| Depth | Approximately 62.2 cm |
| Weight | Approximately 275 kg |
| Colour | Black |
| Country of manufacture | Poland |
The Kratki NBC 10 3-sided wood fireplace combines a 10 kW nominal heat output with a heating range of up to 13 kW. Its three-sided glass, rise-and-fall door, heat-intensifying ceramic lining and steel construction provide the features expected from a substantial built-in wood fireplace.
All Kratki’s wood-burning fireplaces come with a 10-year warranty. Kratki designed your fireplace with strength and durability.
View our range of 3-sided fireplaces.
A large 3-sided built-in fireplace requires careful planning. The fireplace enclosure, chimney, flue system, combustion air, ventilation and required clearances must all be considered, and the substantial weight of the NBC 10 must be taken into account when preparing the installation structure.
Italfire installs fireplaces supplied by Italfire. Contact our team to discuss the Kratki NBC 10, installation requirements and suitability for your space.
