Kratki – Nadia 9 Built-in Fireplace 11kw

R54,000.00

A modern built-in wood-burning fireplace with a distinctive tall, vertical design and a large glass window.

10-year warranty
11 kW max output
Wood burning
80% efficiency

Specifications

Product type
Built-in fireplace
Fuel type
Wood
Max heat output
11 kW
Heating capacity
120–270 m³
Material
Steel with highly refractory ceramic Acumotte
Weight
128 kg
Efficiency
80%
CO emissions
0.1%
Flue pipe diameter
200 mm

Downloads

The price shown is the unit price. Please contact us for an installation quotation.

Add product to quote

This field is for validation purposes and should be left unchanged.

Enquire about this project

This field is for validation purposes and should be left unchanged.
Name(Required)

Kratki Nadia 9 Built-In Wood Fireplace

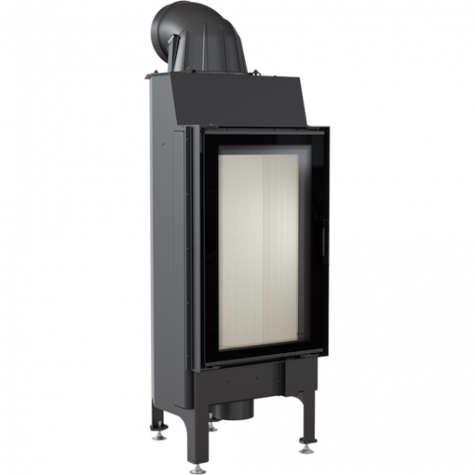

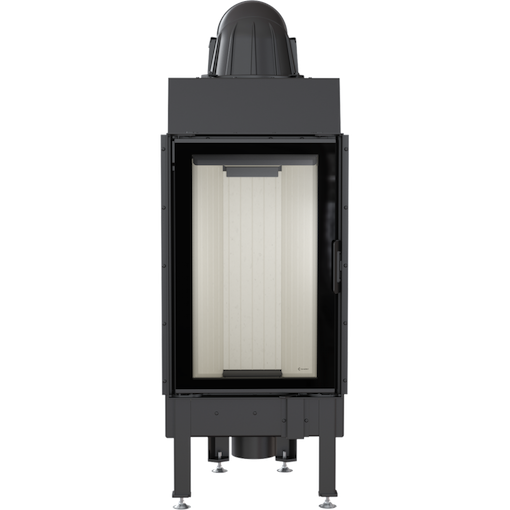

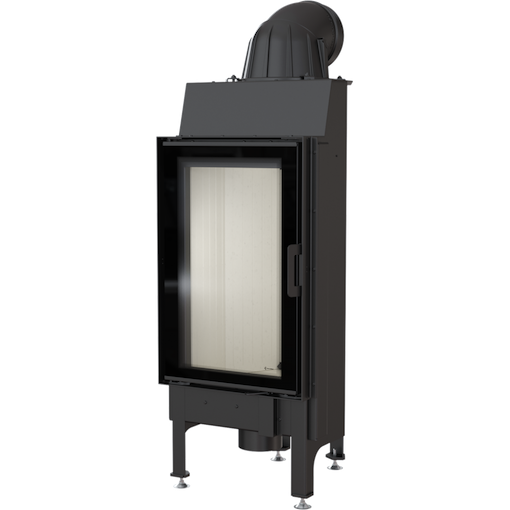

The Kratki Nadia 9 is a modern built-in wood-burning fireplace with a distinctive vertical design. Its tall, rectangular form creates a strong architectural feature while making efficient use of wall space.

The Nadia 9 has a 9 kW nominal heat output and a heating output range of 5–11 kW. Kratki specifies 80% thermal efficiency and a heating capacity of approximately 160–275 m³ for the model. Actual heating performance depends on insulation, glazing, room volume, building construction and heat loss.

Its vertical proportions, large glass window and black steel construction make the Nadia 9 well suited to contemporary fireplace installations.

Design and construction

Distinctive vertical design

A unique fireplace with a tall rectangular shape in the vertical direction, giving it a different visual character from wider, conventional built-in fireboxes. Its relatively narrow footprint makes it an interesting option where vertical proportions are preferred, and the black steel body and large glass window let the flames become the main visual focus.

Large glass window and air-wash

A substantial heat-resistant glass window gives a clear view of the fire. Kratki’s air-wash glass-cleaning system is designed to reduce soot deposits on the glass, helping keep the flames visible during normal burning.

Heat-intensifying ceramic lining

The combustion chamber is lined with Kratki’s heat-intensifying ceramic material, designed to help retain heat within the chamber and protect the firebox from the high temperatures of wood burning. Kratki also lists TERMOTEC plates for the Nadia 9.

Steel construction

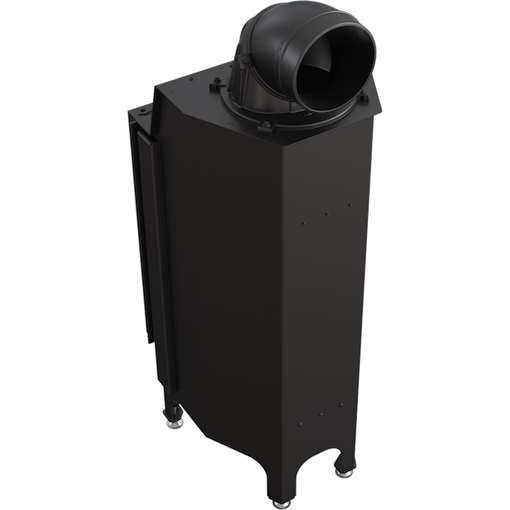

The Nadia 9 is made from steel designed for high-temperature fireplace operation. This Kratki built-in fireplace measures approximately 48.4 cm wide, 120 cm high and 44.5 cm deep and weighs approximately 128 kg, with a 200 mm flue outlet and a 125 mm air intake.

Efficient closed combustion

The Nadia 9 is designed for wood burning and uses primary and secondary combustion technology. Kratki’s manufacturer information also specifies natural convection and radiant heat transfer as part of its fireplace technology.

It is designed to burn seasoned deciduous wood with a moisture content of 20% or less. Properly seasoned firewood supports efficient combustion and reduces excessive smoke and deposits in the chimney.

Modern fireplace for contemporary interiors

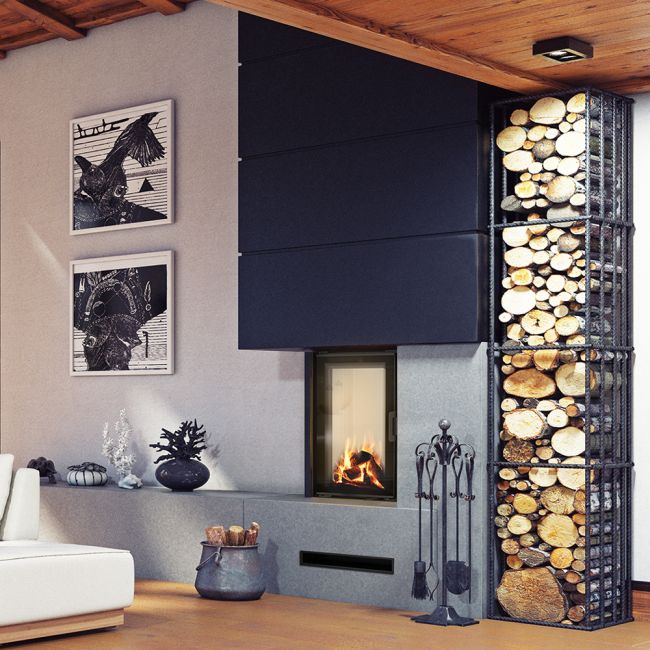

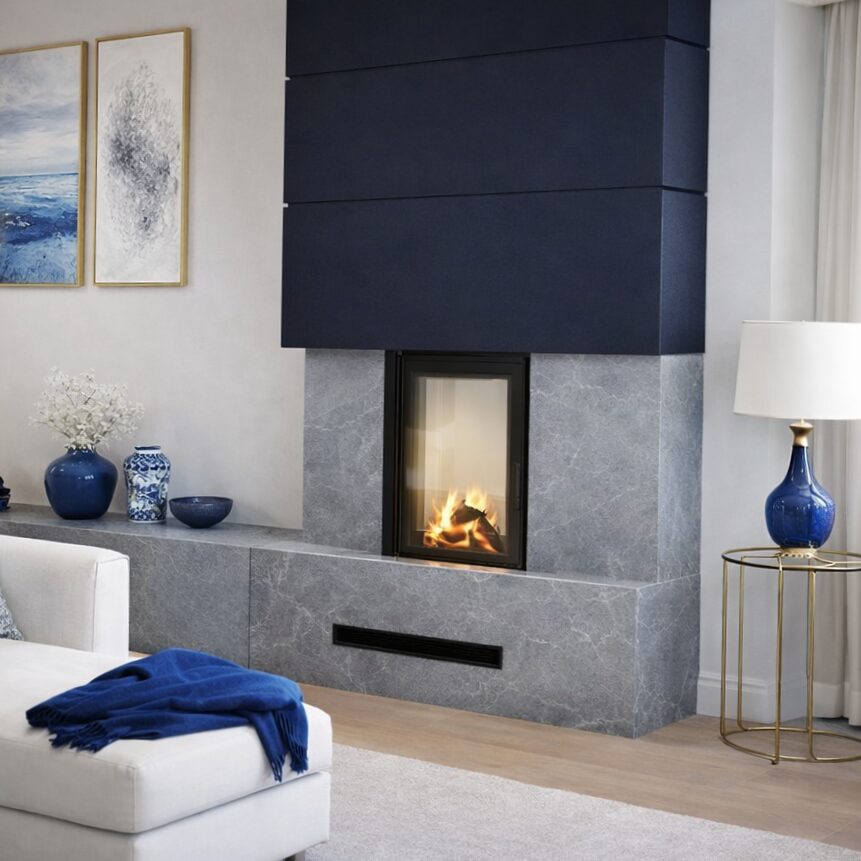

Designed as a built-in fireplace, the Nadia 9 can form part of a purpose-designed fireplace wall or architectural installation. Its vertical shape works particularly well in contemporary interiors where a taller fireplace profile is preferred, and its tall proportions make the dimensions especially relevant when planning the enclosure and surrounding wall.

Kratki Nadia 9 specifications

Specification Detail
Brand Kratki
Model Nadia 9
Fireplace type Built-in wood fireplace
Fuel Seasoned wood
Nominal heat output 9 kW
Heating output range 5–11 kW
Thermal efficiency 80%
Energy class A
Heating capacity 160–275 m³
Material Steel
Combustion technology Primary and secondary combustion
Combustion chamber Heat-intensifying ceramic lining
Door Standard front door
Door opening Left
Flue diameter 200 mm
Air intake diameter 125 mm
Maximum log length 320 mm
Width 48.4 cm
Height 120 cm
Depth 44.5 cm
Weight Approximately 128 kg
Colour Black
Country of manufacture Poland

All Kratki wood-burning fireplaces come with a 10-year warranty, and Kratki designs its fireplaces for strength and durability. When cleaning the glass, we recommend the Kratki glass cleaning spray.

Professional installation of the Nadia 9

A built-in wood-burning fireplace requires careful planning. The enclosure, chimney, flue system, combustion air, ventilation and required clearances should all be considered during design and installation, following Kratki’s requirements.

Italfire installs fireplaces supplied by Italfire. Contact our team to discuss the Kratki Nadia 9, its installation requirements and suitability for your space.
