Kratki – Nadia 14 PBSG Corner Fireplace 17kw

R104,500.00

A large built-in corner wood fireplace that combines substantial heating performance with a wide view of the fire.

10-year warranty
17 kW max output
Wood burning
80% efficiency

Specifications

Product type
Built-in corner fireplace
Fuel type
Wood
Max heat output
17 kW
Heating capacity
190–430 m³
Material
Steel with highly refractory Acumotte ceramic
Weight
255 kg
Efficiency
80%
CO emissions
0.09%
Flue pipe diameter
200 mm

Downloads

The price shown is the unit price. Please contact us for an installation quotation.

Explore more: Built-in corner fireplaces · Corner fireplaces

Add product to quote

This field is for validation purposes and should be left unchanged.

Enquire about this project

This field is for validation purposes and should be left unchanged.
Name(Required)

Kratki Nadia 14 PBSG Corner Wood Fireplace

The Kratki Nadia 14 PBSG is a large corner built-in wood-burning fireplace designed to combine substantial heating performance with a wide view of the fire.

It has a 14 kW nominal heat output and a heating output range of 6.5–17 kW. Kratki specifies 80% thermal efficiency and a 200 mm flue outlet for this model.

Its corner configuration, large glass door and elegant rise-and-fall opening system make the Nadia 14 PBSG a strong architectural feature for contemporary living spaces.

Design and performance

14 kW corner wood fireplace

Designed for wood burning with a closed-combustion system, the Nadia 14 PBSG offers a 14 kW nominal output, with heating output reaching 17 kW. It suits larger residential installations where a substantial built-in wood fireplace is required. Sizing should always take room volume, insulation, glazing, construction and heat loss into account.

Rise-and-fall door

The corner configuration is one of its defining features. This Kratki corner fireplace sits within a corner while giving a broad view of the flames. The rise-and-fall glass door lifts upwards for loading wood; Kratki identifies this model as a right-sided guillotine configuration.

Wide view of the fire

The large glass door gives an expansive view of the flames and a contemporary look. Kratki’s built-in fireplace range uses an air-wash glass-cleaning system to reduce soot deposits, keeping the view clearer during normal burning.

Heat-intensifying ceramics

The combustion chamber is lined with TERMOTEC heat-accumulating ceramic. Kratki states that this material helps increase and retain the temperature inside the chamber, while providing a durable surface during high-temperature operation.

Efficient closed combustion

Kratki specifies an A energy class for the current Nadia 14 configuration. Burn seasoned deciduous wood with a moisture content of 20% or less – properly seasoned firewood supports efficient combustion and can reduce excessive smoke and chimney deposits.

Strong steel construction

Built from high-quality steel designed to withstand the temperatures of wood burning, the PBSG weighs approximately 304 kg and takes logs up to 700 mm long. Its substantial construction makes correct preparation and professional installation particularly important.

Kratki Nadia 14 PBSG specifications

Specification Details
Brand Kratki
Model Nadia 14 PBSG
Fireplace type Built-in corner fireplace
Fuel Wood
Nominal heat output 14 kW
Heating output range 6.5–17 kW
Thermal efficiency 80%
Energy class A
Configuration Corner
Door Rise-and-fall glass door
Door configuration Right-sided guillotine
Combustion chamber TERMOTEC heat-accumulating ceramic lining
Material Steel
Flue diameter 200 mm
Maximum log length 700 mm
Flue gas temperature 245 °C
CO emissions 0.09%
Weight Approximately 304 kg
Colour Black
Country of manufacture Poland

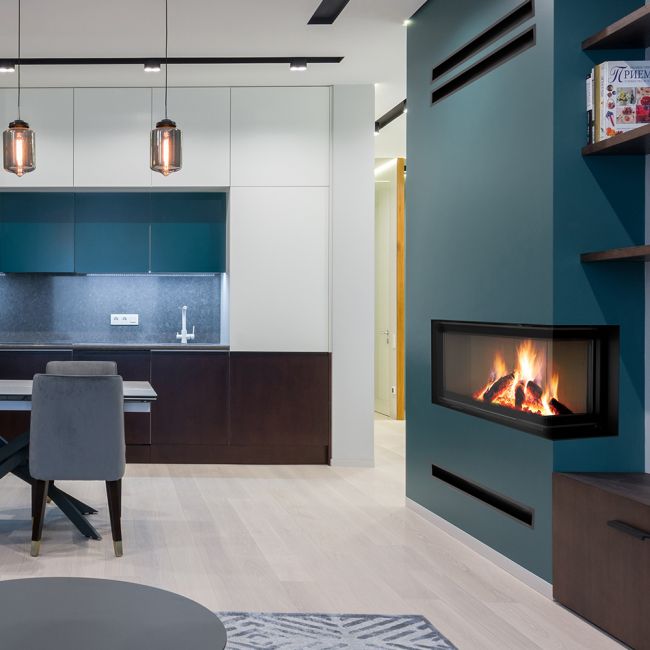

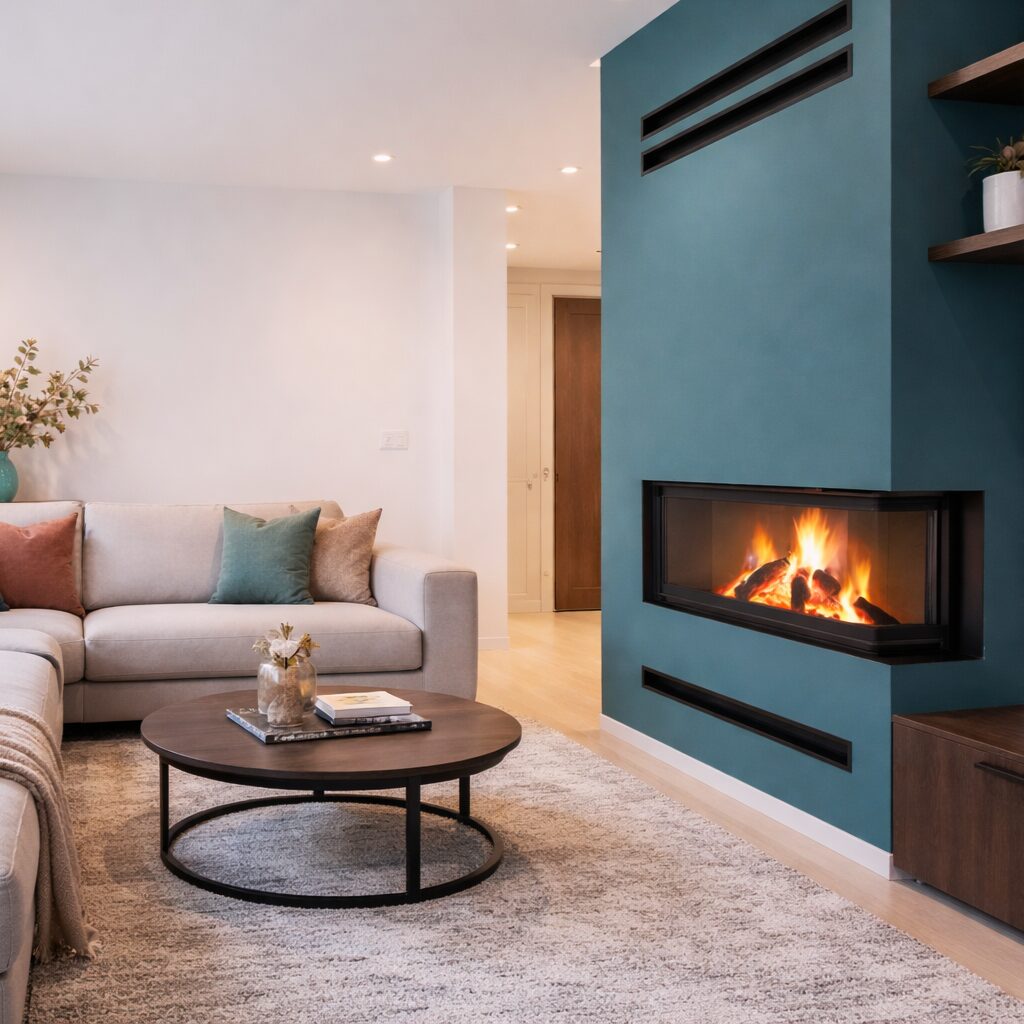

A corner fireplace for contemporary interiors

The Nadia 14 PBSG is designed for installations where a fireplace needs to occupy a corner while keeping a strong visual presence. Its large glass door keeps the flames visible, while the corner configuration helps integrate the fireplace into an open-plan or contemporary interior.

The final enclosure should be designed around the manufacturer’s installation requirements, including clearances, ventilation, combustion air and flue requirements.

Professional installation

A large corner built-in fireplace needs careful planning before construction begins. The enclosure, chimney, flue system, combustion air, ventilation and clearances must all be considered, as well as the substantial weight of the unit when preparing the structure.

Italfire installs fireplaces supplied by Italfire. Contact our team to discuss the Kratki Nadia 14 PBSG, its installation requirements and its suitability for your space.
