Charnwood – Cove 3 fireplace with store stand 16kw

R76,400.00

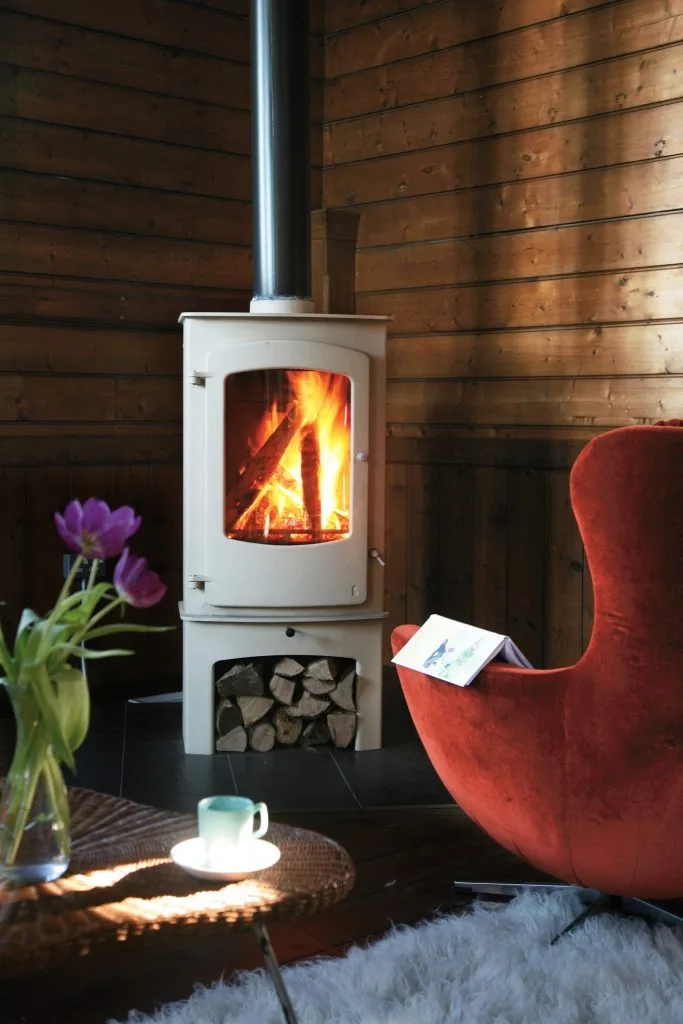

The largest fireplace in the Charnwood Cove range, on a Store Stand with space for firewood below and a tall curved door with a wide view of the flames.

10-year manufacturer’s warranty
16 kW
Eco-design 2022 ready
Schott Robax glass

Specifications in brief

  • Charnwood ‘Blu’, Eco-design 2022 ready wood-burning option available
  • 10-year manufacturer’s warranty
  • 16 kW
  • Multi-fuel converter grate
  • Quattro Flow air intake
  • External air intake option
  • Choice of leg heights/stands
  • Standard dimensions (maximum cm): 113 h × 59 w × 44 d
  • Ash pan with ash pan/riddle mechanism tool
  • Heat-resistant handle
  • Schott Robax glass

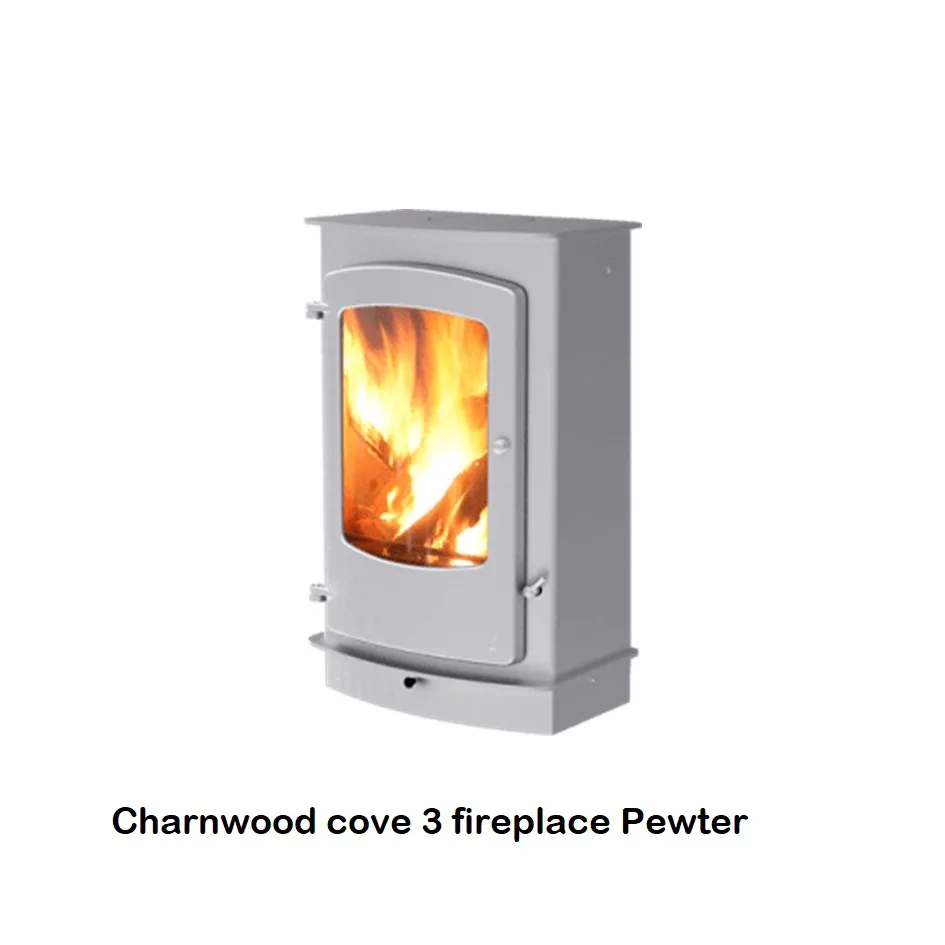

  • Optional colours available
  • Optional convection side panels available

Optional extras

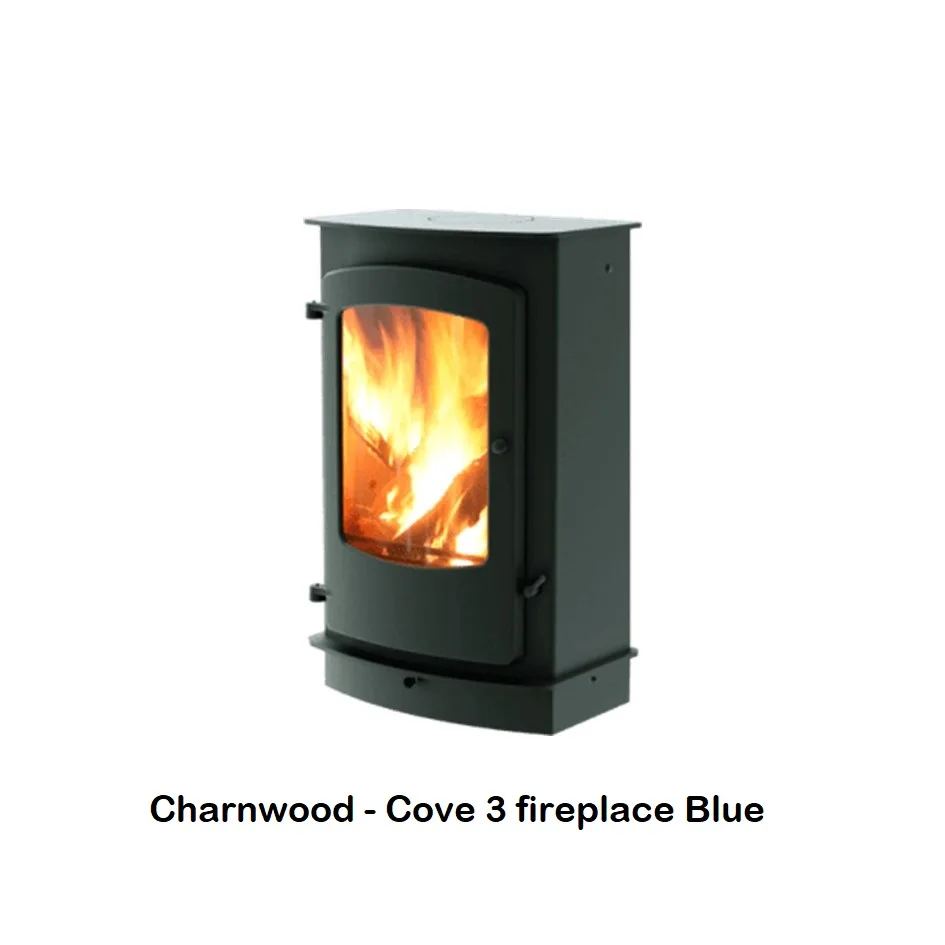

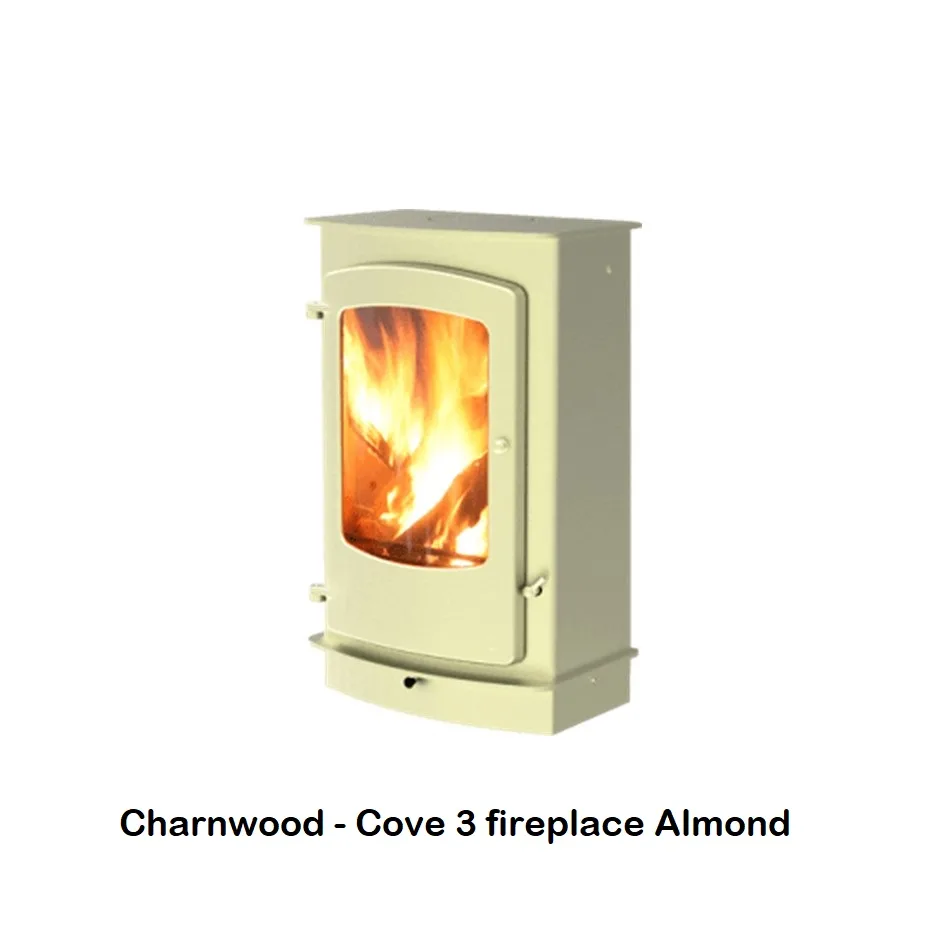

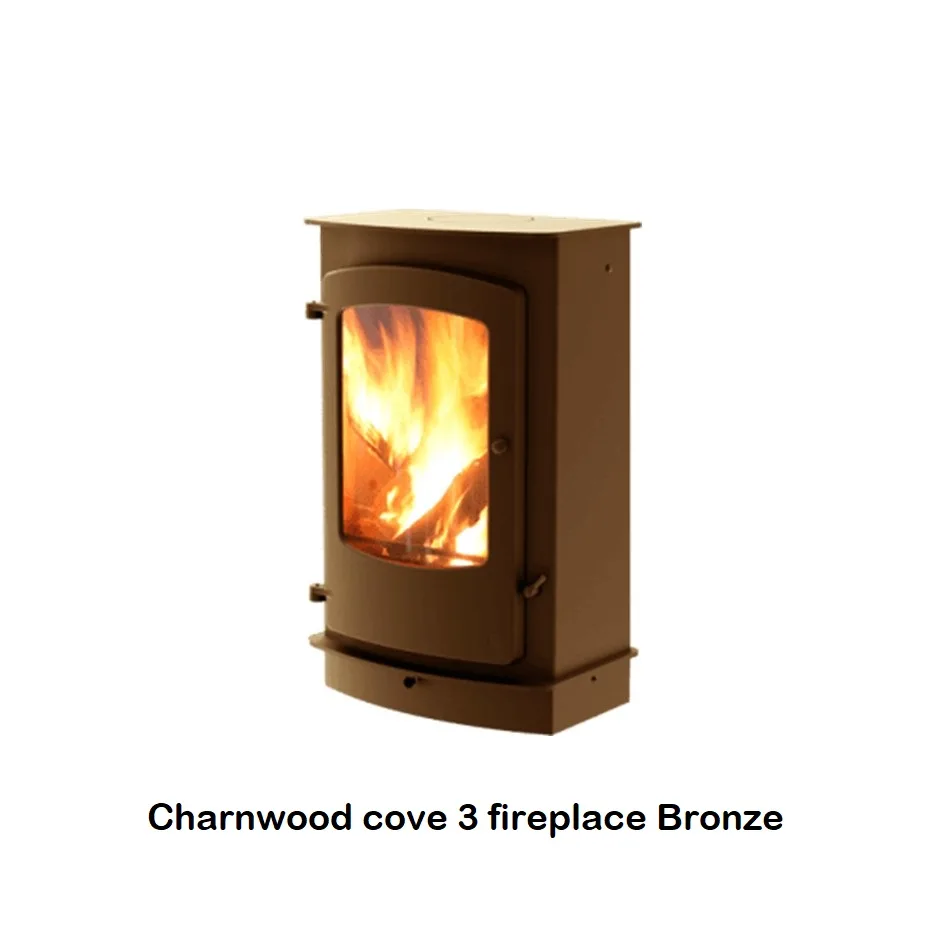

  • Choice of eight colours: R5000 extra (2–3 week lead time)

Downloads

New stock ETA early–mid March.

The price shown is the unit price. Please contact us for an installation quotation.

Add product to quote

This field is for validation purposes and should be left unchanged.

Enquire about this project

This field is for validation purposes and should be left unchanged.
Name(Required)

Charnwood Cove 3 Wood Burning Fireplace with Store Stand

The Charnwood Cove 3 is the largest fireplace in the Cove range, combining substantial heat output with a distinctive curved-door design.

With a 12 kW rated output and a heat output range of 7–16 kW, the Cove 3 is designed for larger rooms, halls and open-plan living areas. This freestanding fireplace is suitable for a space of up to approx. 400 m³. This version features the Store Stand, giving the stove an elevated freestanding profile with integrated space below for storing firewood.

Thanks to the large portrait-shaped curved glass and a firebox that takes logs up to 50 cm long, you can be assured of an impressive fireside experience. The Cove 3 Charnwood fireplace has one simple air control to keep the user experience easy and uncomplicated, and the substantial proportions of this cast iron fireplace make it especially eye-catching in a double-volume space.

Design and performance

12 kW wood-burning stove

The Cove 3 has a 12 kW rated heat output with an operating range of 7–16 kW. The current Cove 3 BLU specification gives a net efficiency of 80% and a maximum log length of approximately 481 mm (19 inches). Its substantial firebox and high output suit larger spaces where a smaller stove may not provide sufficient heat.

Large curved viewing window

A tall curved door gives a clear view of the fire. Its proportions give the stove a distinctive appearance, while the large firebox accommodates logs of up to approximately half a metre long. It works well as a statement stove in both traditional and contemporary interiors.

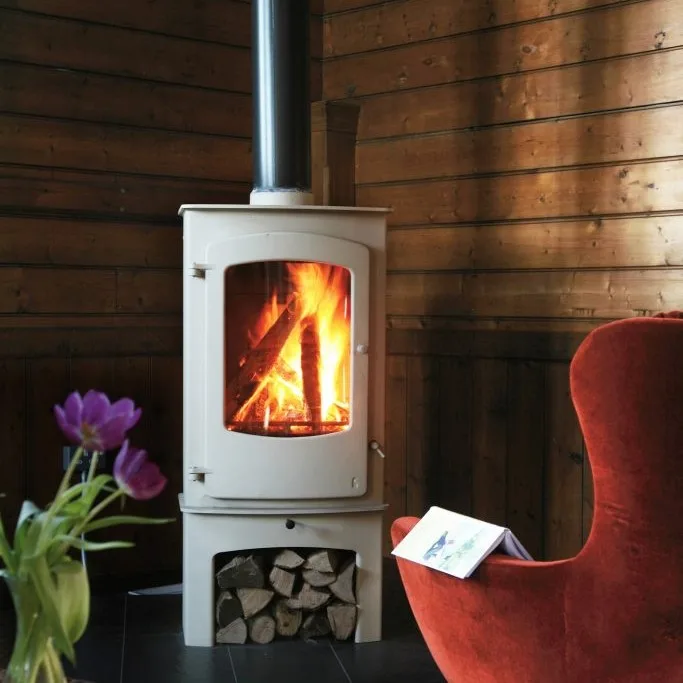

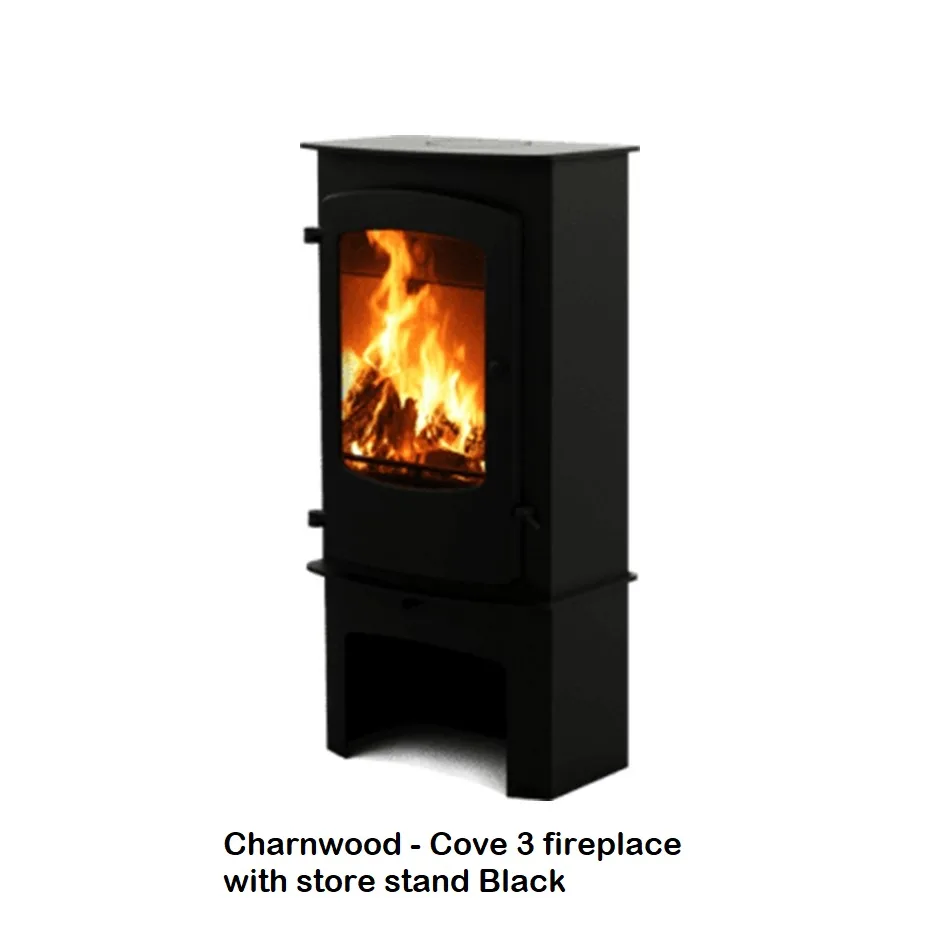

Store Stand

The Store Stand raises the stove for a taller freestanding installation, measuring approximately 1330 mm high, 660 mm wide and 585 mm deep, with a stove weight of approximately 171 kg. The space beneath provides a practical place to store firewood while keeping the installation clean.

Clean-burning technology

Cleanburn supports efficient combustion, while the Airwash system helps keep the ceramic glass clearer during operation. A drop-down throat plate allows the chimney to be swept through the stove. The current Cove 3 BLU specification is SIA Eco Design Ready.

Wood burning, BLU and stand options

The current Cove 3 BLU is designed for wood burning. Charnwood’s documentation specifies seasoned hardwood for the published performance figures. Charnwood also lists a non-BLU Cove 3 model that can be supplied with a multi-fuel grate for suitable solid fuels, so the exact configuration should be confirmed before purchase.

The ‘Blu’ version of the Cove 3 meets the 2022 requirements for clean burning and particulate reduction, so it is likely that after 2021 only the Blu version will be available in South Africa.

You can select from a choice of 5 different stand options, and we generally have all in stock. We are happy to order your preference from the UK factory if it isn’t available at the time of your order.

Flue connection and clearances

The Cove 3 uses a 178 mm (7-inch) flue outlet on the current BLU specification, with top or rear connection options; a vertical rear flue adaptor is available as an option. A 180 mm flue diameter is required for the Cove 3 installation.

Optional convection panels gently convect heat into the room and can reduce the stated distance to combustible materials to 250 mm when fitted. Clearance requirements must always be confirmed for the exact installation and configuration.

Installation should follow the manufacturer’s requirements together with applicable South African regulations. Correct flue sizing, clearances, hearth requirements and combustion air provision are essential.

Charnwood Cove 3 in South Africa

The Charnwood Cove 3 wood-burning stove is designed for larger homes, spacious living areas and open-plan rooms requiring substantial heat output. Its 12 kW rated output, 7–16 kW range, large firebox and tall curved viewing window give it a strong presence, while the Store Stand adds practical firewood storage beneath the stove.

Charnwood fireplaces

Charnwood is one of the best wood-burning fireplace brands in South Africa. Every Charnwood fireplace is built in the United Kingdom using precision-engineered steel and cast iron components, designed to provide efficient heat with exceptional flame control. These fireplaces combine traditional craftsmanship with modern combustion technology.

Check out our Charnwood fireplace range – the definitive Charnwood fireplaces South Africa resource.

Talk to Italfire

Contact Italfire to discuss the Charnwood Cove 3 and installation requirements for your home.
