Charnwood – Arc 7 fireplace 11kw

R64,850.00

The larger of Charnwood’s two Arc stoves: a contemporary multi-fuel stove for larger rooms, with a cast iron door and air-wash glass. Available with a low stand or store stand.

Eco-design 2022 ready
11 kW
Multi-fuel
Choice of 8 colours

Specifications

Heat output
11 kW
Material
Boiler plate steel with cast iron door
Grate
Multi-fuel grate
Flue
Top or rear flue option
Weight
170 kg with stand
Dimensions (with stand)
104 cm (h) × 49 cm (w) × 45 cm (d)

Features

  • Eco-design 2022 ready
  • Air-wash system to improve glass cleaning and efficiency

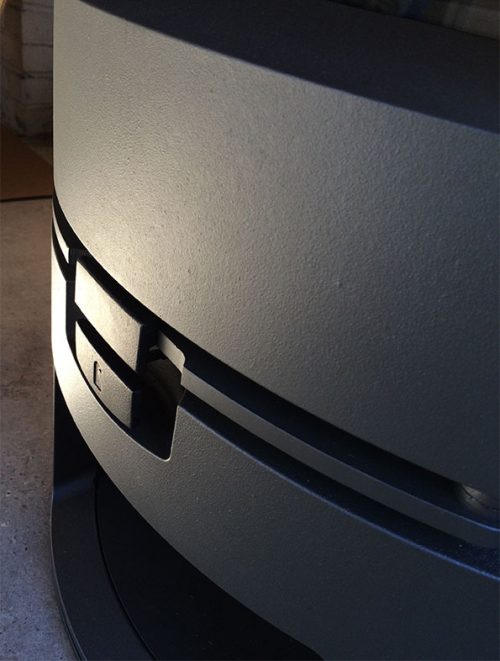

  • Heat-resistant handle
  • Ash pan
  • External air intake option

Optional extras

  • Store stand

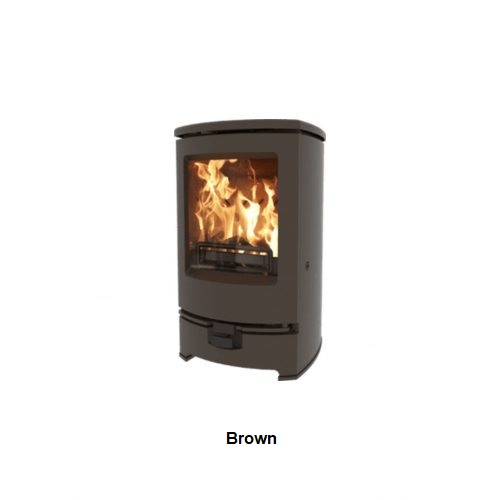

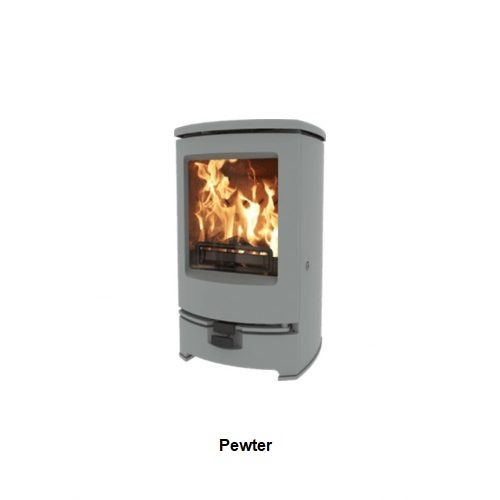

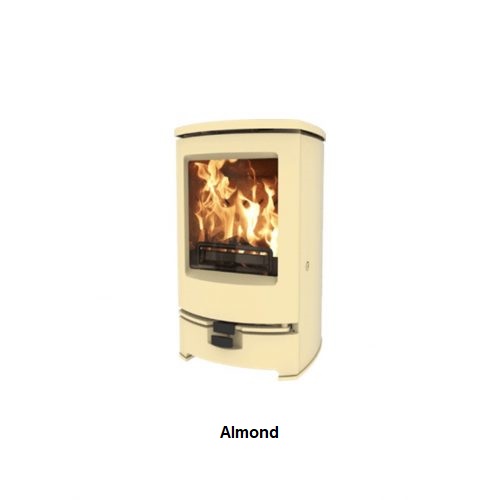

  • Choice of eight colours R5000 extra (2–3 week lead time)

Downloads

The price shown is the unit price. Please contact us for an installation quotation.

Add product to quote

This field is for validation purposes and should be left unchanged.

Enquire about this project

This field is for validation purposes and should be left unchanged.
Name(Required)

Charnwood Arc 7 Wood Burning Stove

The Charnwood Arc 7 is a contemporary multi-fuel stove designed for larger rooms and open-plan living areas. Its clean, modern design and large fire-viewing window make it a strong focal point.

The larger of the two Arc stoves, it has a 7 kW nominal heat output and is rated as an 11 kW max stove, heating around 275 m³ of room space. It is available with a low stand or a ‘store stand’, and features an innovative combustion system for clean and efficient burning.

Like its smaller counterpart, the Arc 5, the Arc 7 has heat shields as standard, so it can be placed closer to combustible materials than a normal stove – a good choice for tight spots. A multi-fuel converting grate also comes as standard, letting you burn anthracite as well as wood.

Design and performance

7 kW multi-fuel fireplace

The Arc 7 has a 7 kW rated output with a 5–11 kW range, suitable for larger South African living areas that need more heat. It achieves 81% net efficiency on wood and 79% on solid fuel (anthracite), and accepts logs up to 325 mm (12.5 inches) long.

Large view of the fire

A large ceramic glass window gives a clear view of the flames, keeping the stove visually clean while placing the fire at the centre of the room. Cleanburn Airwash Technology helps keep the glass clearer while operating.

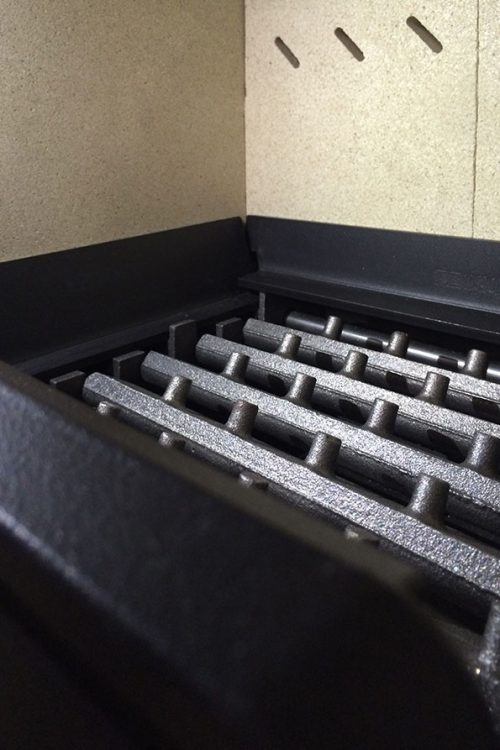

True multi-fuel stove

Its converting grate accommodates different solid fuels. Charnwood’s technical documentation gives a 7.5 kW test output and 81% net efficiency for wood logs, and a 7.7 kW test output with 79% net efficiency for smokeless fuel.

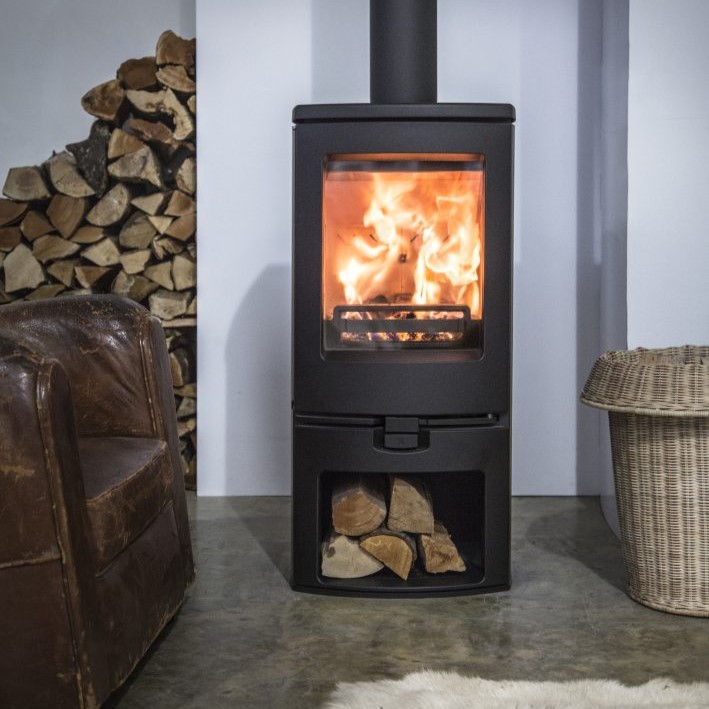

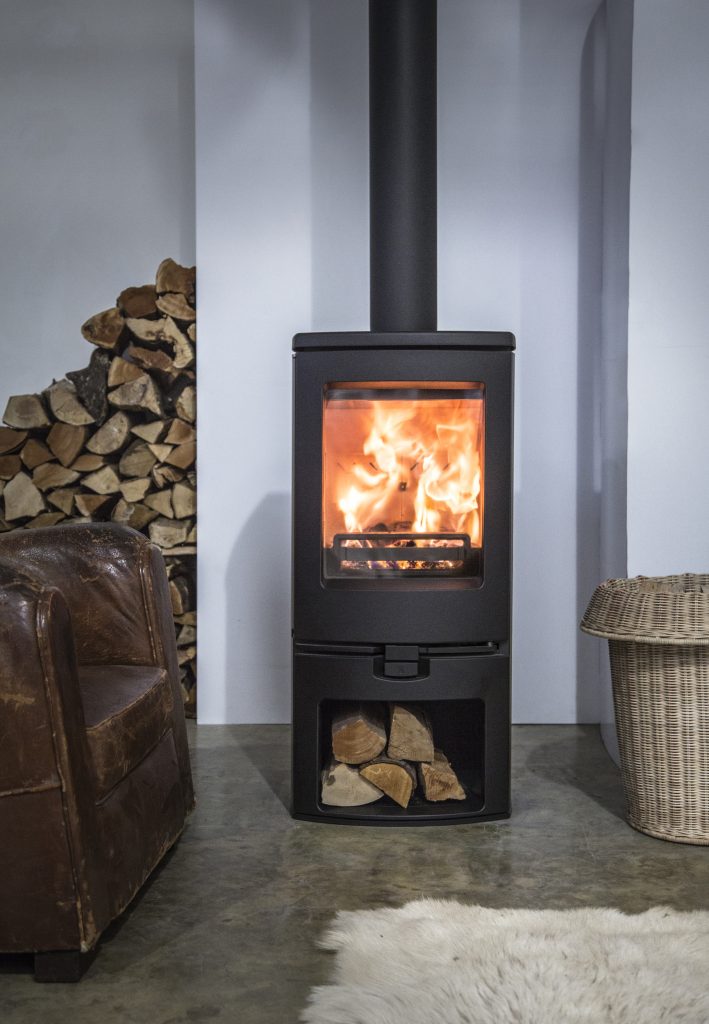

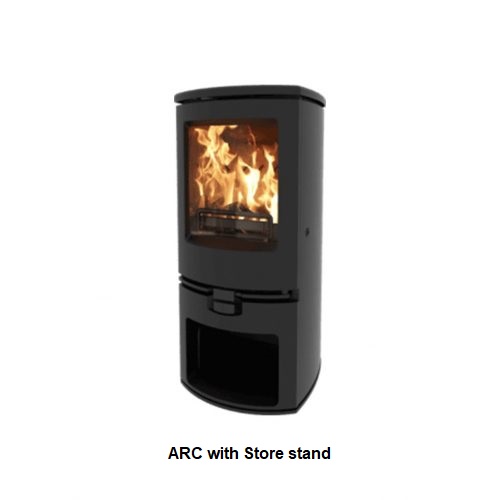

Store stand

The store stand raises the stove from floor level and creates an integrated area beneath it, giving a taller freestanding look. The store stand version weighs approximately 170 kg and measures approximately 502 mm wide, 449 mm deep and 894 mm high. A low stand configuration is also available.

See how much control the Arc 7 offers in the video on the ‘Technical’ page.

Clean and efficient burning

The Charnwood Arc 7 incorporates several technologies for clean, controlled combustion. The drop-down throat plate allows the chimney to be swept through the stove, and the inverted flue collar provides a seamless flue connection.

Flue and installation

The Arc 7 has a 150 mm (6 inch) diameter flue outlet with top or rear connection options. Installation must follow the manufacturer’s requirements and applicable South African regulations, including the specified minimum clearances from combustible materials.

Charnwood Arc 7 specifications

Specification Details
Brand Charnwood
Model Arc 7
Type Multi-fuel stove
Fuel Wood and anthracite
Rated output 7 kW
Output range 5–11 kW
Net efficiency – wood 81%
Net efficiency – solid fuel 79%
Maximum log length 325 mm / 12.5″
Flue outlet Top or rear
Flue diameter 150 mm / 6″
Store stand weight 170 kg
Store stand width 502 mm
Store stand depth 449 mm
Store stand height 894 mm
Materials Plate steel, cast iron, fire bricks, ceramic glass
Air management Quattroflow
Glass technology Cleanburn Airwash
Stand options Low stand / store stand
Colour options Eight colours

Specifications are based on Charnwood’s current Arc 7 product and technical documentation.

Options and colours

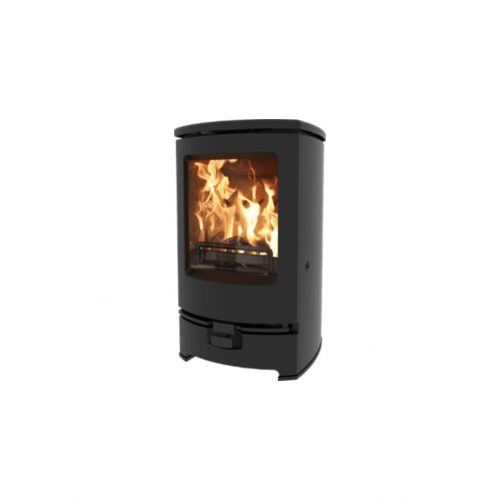

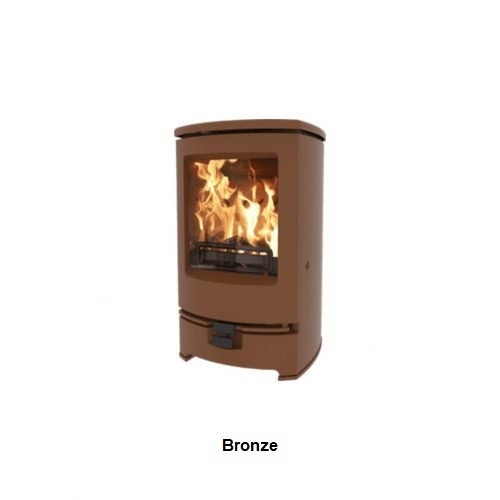

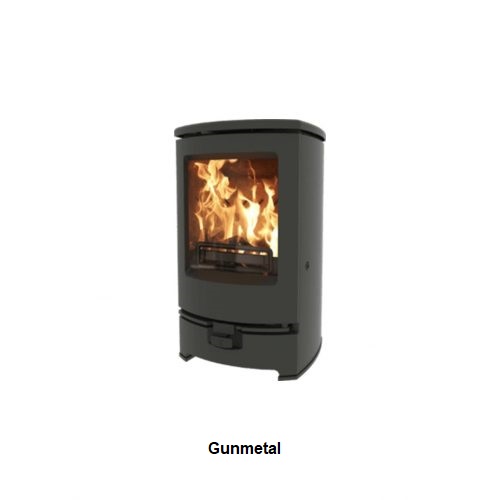

The Arc 7 low stand is black and comes without the store stand. Various colour options are available for an extra R5000 with a 2–3 week lead time.

Charnwood fireplaces

Charnwood is one of the best wood-burning fireplace brands in South Africa. Every Charnwood fireplace is built in the United Kingdom using precision-engineered steel and cast iron components, designed to provide efficient heat with exceptional flame control. These fireplaces combine traditional craftsmanship with modern combustion technology.

Browse the Charnwood fireplace range – the definitive Charnwood fireplaces South Africa resource.

  • Built in the United Kingdom
  • Precision-engineered steel and cast iron
  • Exceptional flame control
  • Traditional craftsmanship, modern combustion

Need more information?

The Charnwood Arc 7 offers a 7 kW heat output, contemporary design and a large view of the fire, with the flexibility of burning different solid fuels. Contact Italfire for more information about the Arc 7 and installation options in South Africa.
