Kratki – Nadia 14 LBSG Corner Fireplace 17kw

R104,500.00

A large built-in corner wood fireplace in steel with a highly refractory ceramic Acumotte lining and a rise-and-fall glass door.

10-year warranty
17 kW output
Wood burning
80% efficiency

Specifications

Product type
Built-in corner fireplace
Fuel type
Wood
Heat output
17 kW
Heating capacity
190–430 m³
Material
Steel with highly refractory ceramic Acumotte
Weight
255 kg
Efficiency
80%
CO emissions
0.09%
Flue pipe diameter
200 mm

Downloads

The price shown is the unit price. Please contact us for an installation quotation.

Explore more: Built-in corner fireplaces · Corner fireplaces

Add product to quote

This field is for validation purposes and should be left unchanged.

Enquire about this project

This field is for validation purposes and should be left unchanged.
Name(Required)

Kratki Nadia 14 LBSG Corner Wood Fireplace

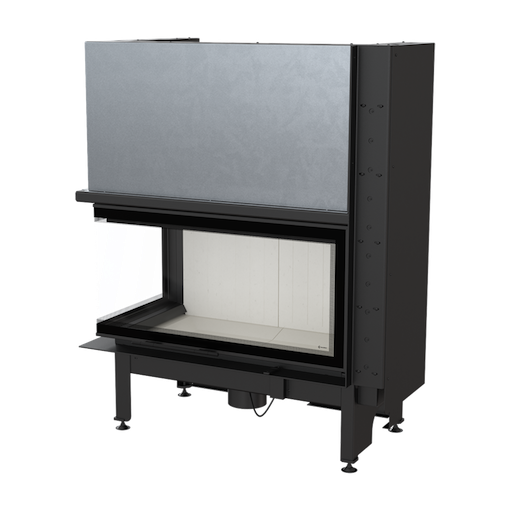

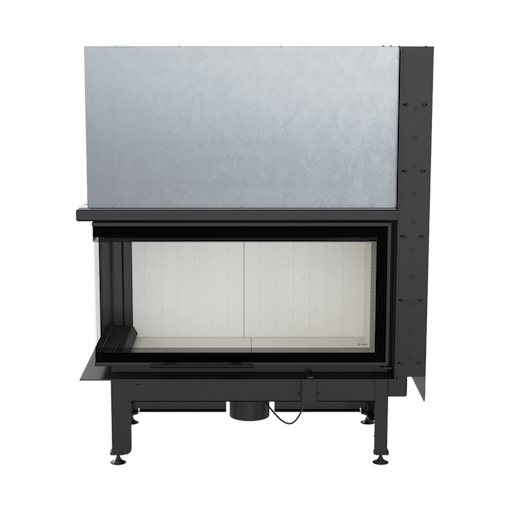

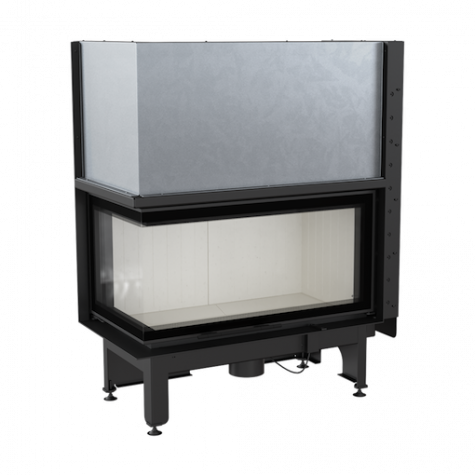

The Kratki Nadia 14 LBSG is a large corner built-in wood-burning fireplace designed to combine substantial heating performance with an expansive view of the fire.

It has a 14 kW nominal heat output and a heating output range of 6.5–17 kW. Kratki specifies 80% thermal efficiency and a heating capacity of approximately 190–415 m³.

Its corner configuration and large rise-and-fall glass door make the Nadia 14 LBSG a strong architectural feature for contemporary living spaces.

Design and performance

14 kW corner wood fireplace

The Nadia 14 LBSG is designed for wood burning and uses a closed-combustion system. Its 14 kW nominal output provides substantial heating, with output reaching 17 kW. A heating capacity of 190–415 m³ makes it suitable for larger residential spaces, subject to the property’s insulation, construction and heat-loss characteristics.

Large corner fireplace with rise-and-fall door

The corner design fits into a corner while giving a broad view of the flames, so the fire remains a prominent feature without a conventional front-facing installation. The rise-and-fall glass door lifts upwards for loading wood; Kratki identifies this configuration as a left-sided guillotine version.

Wide view of the fire

The large glass door gives an impressive view of the flames and a modern appearance. Kratki uses heat-resistant glass with an air-wash system designed to reduce soot deposits during operation, and the rise-and-fall mechanism creates a clean appearance when the fireplace is closed.

Heat-intensifying ceramic chamber

The combustion chamber is lined with Kratki’s heat-intensifying ceramic material, a heat-accumulating lining that helps maintain a higher temperature in the chamber. It supports the combustion process while providing thermal protection inside the firebox.

Efficient closed combustion

According to the Kratki South Africa specification, the Nadia 14 LBSG uses primary and secondary combustion, and the range incorporates natural convection and radiant heating technology. Kratki lists an A energy class and a 200 mm flue outlet. It is designed for seasoned deciduous wood with a moisture content of 20% or less, which supports efficient combustion and reduces excessive smoke and deposits in the flue.

Strong steel construction

The fireplace is manufactured from steel designed to withstand the high temperatures of wood burning. At approximately 255 kg and approximately 106.4 × 65.9 × 133.6 cm, it is a substantial unit. Current Kratki documentation for the corresponding left-sided Nadia 14 lift-up configuration lists a 200 mm flue outlet and 14 kW nominal output.

A corner fireplace for modern interiors

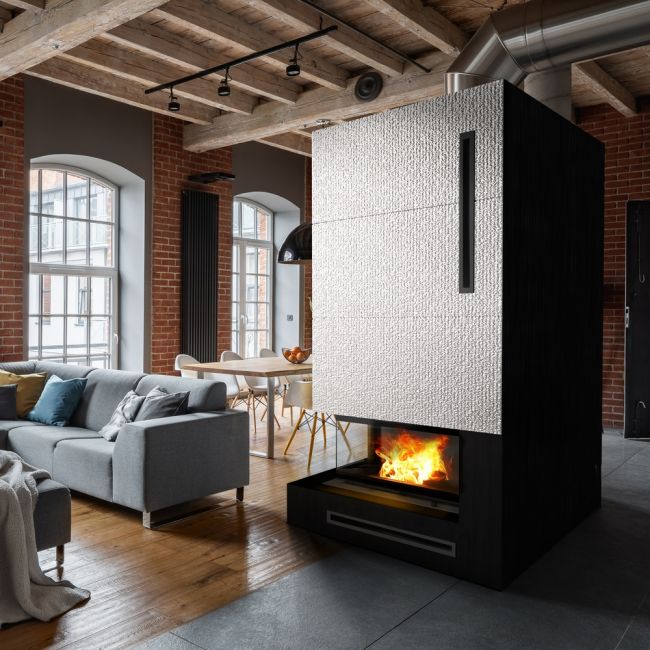

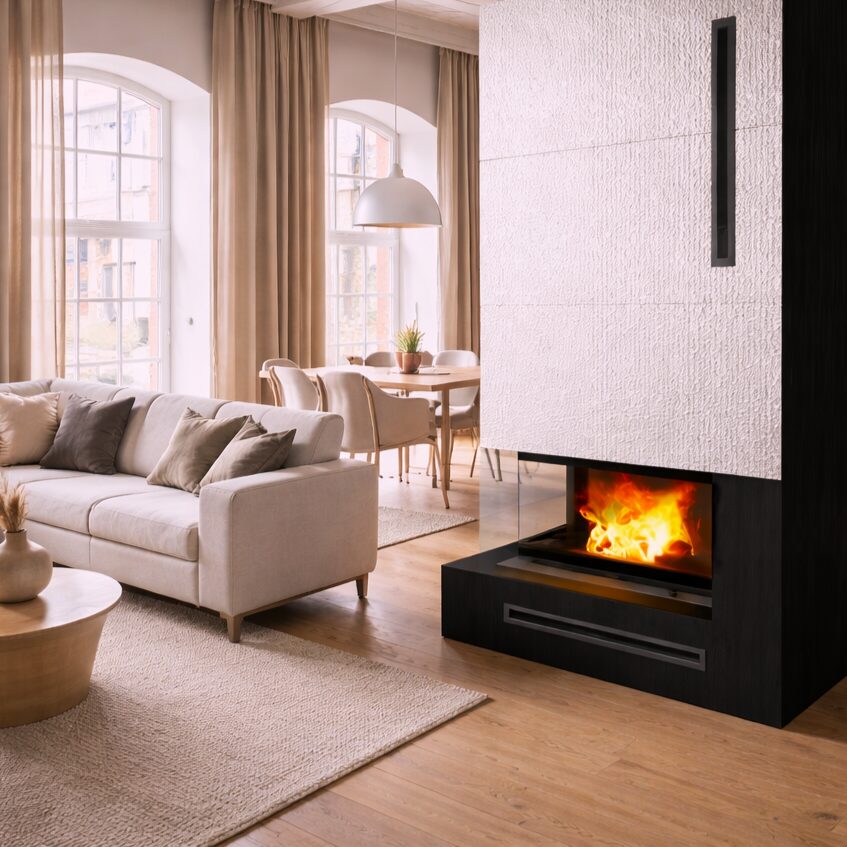

The corner configuration suits installations where a fireplace needs to make use of a corner while still creating a strong visual focal point. Its large glass door, rise-and-fall opening system and modern steel construction work well within contemporary fireplace designs.

This Kratki corner fireplace can be incorporated into a purpose-built enclosure, with the final installation designed around the required clearances, ventilation, combustion air and flue system.

Kratki Nadia 14 LBSG specifications

Brand
Kratki
Model
Nadia 14 LBSG
Fireplace type
Built-in corner fireplace
Fuel
Wood
Nominal heat output
14 kW
Heating output range
6.5–17 kW
Thermal efficiency
80%
Energy class
A
Heating capacity
190–415 m³
Material
Steel
Combustion technology
Primary and secondary combustion
Combustion chamber
Heat-intensifying ceramic lining
Door
Rise-and-fall glass door
Configuration
Left-sided corner / left guillotine
Flue diameter
200 mm
Colour
Black
Weight
Approx. 255 kg
Dimensions
Approx. 106.4 × 65.9 × 133.6 cm
Country of manufacture
Poland
Warranty
10 years

Professional installation of the Nadia 14 LBSG

A large corner built-in fireplace requires careful planning before construction begins. The enclosure, chimney, flue system, combustion air, ventilation and required clearances must all be considered, along with the substantial weight and dimensions of the Nadia 14 LBSG.

Italfire installs fireplaces supplied by Italfire. Contact Italfire for more information about the Kratki Nadia 14 LBSG, installation requirements and suitability for your space.
