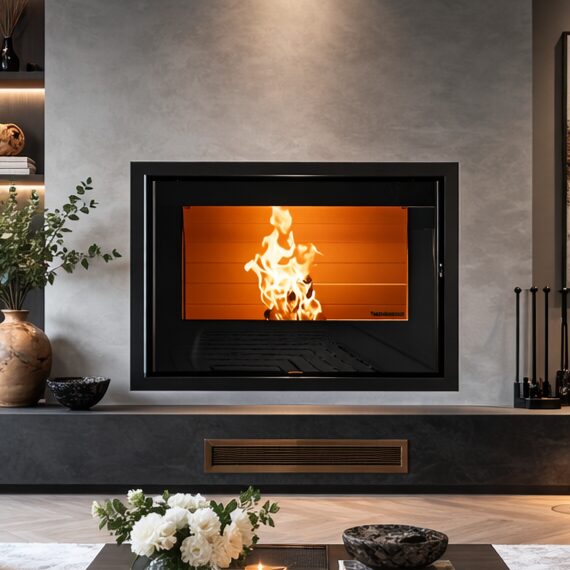

Esprit 490 Insert Pellet Fireplace 10,5kw

R155,950.00

An Italian-made built-in pellet fireplace insert with a self-cleaning burner, designed to convert an existing fireplace opening to automated pellet heating.

10.5 kW heat output
Wood pellets
93.3% efficiency
Made in Italy

Specifications

Product type
Built-in pellet fireplace insert
Fuel type
Wood pellets
Heat output
10.5 kW
Heating capacity
147–262 m³
Weight
95 kg
Efficiency
93.3% nominal / 94.1% reduced
Flue pipe diameter
80 mm

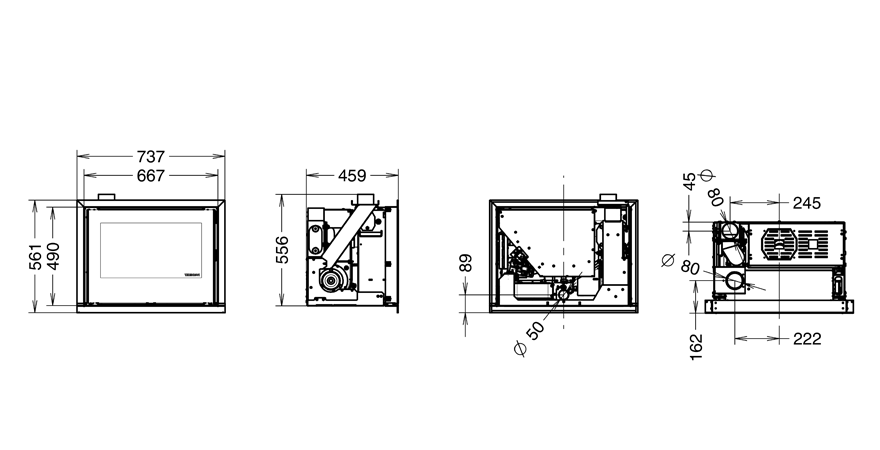

Dimensions (H × W × D)
490 × 667 × 450 mm
Hopper capacity
12.5 kg
Pellet consumption
0.57–2.34 kg
Sound level
36 dB
Electrical supply
230 V / 50 Hz

Optional extras

  • Wi-Fi kit – R6350
  • Variable loading kit – R11515

Downloads

The price shown is the unit price. Please contact us for an installation quotation.

Explore more: Freestanding pellet fireplaces · Premium wood pellets

Add product to quote

This field is for validation purposes and should be left unchanged.

Enquire about this project

This field is for validation purposes and should be left unchanged.
Name(Required)

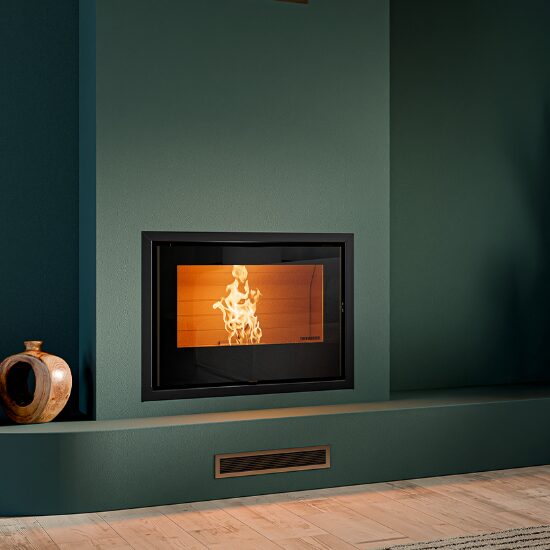

Thermorossi Esprit 490 Insert Pellet Fireplace

The Thermorossi Esprit 490 is an insert pellet fireplace designed for efficient, automated pellet heating, fitting into an existing fireplace opening or a purpose-built installation. With a nominal heat output of up to 10.5 kW, it is a practical alternative to an open fireplace.

This built-in pellet fireplace has a self-cleaning burner and is made and designed 100% in Italy. The compact insert format integrates into an existing surround for a built-in look, while hot-air ducting can distribute heat beyond the room, subject to the manufacturer’s installation requirements.

Thermorossi Esprit 490 features

  • 2.6–10.5 kW nominal heat output
  • 2.8–11.3 kW firebox power
  • 93.3% efficiency at nominal output
  • 94.1% efficiency at reduced output
  • 12.5 kg pellet hopper
  • 0.57–2.34 kg/h pellet consumption
  • PelletPower® patented self-cleaning burner
  • Hot-air ducting capability
  • Room ventilation
  • External primary-air connection
  • Weekly programmer
  • Three programmed ignition periods per day
  • Smart Info function
  • 80 mm flue outlet
  • 36 dB stated sound level
  • 230 V / 50 Hz electrical supply
  • 20–285 W electrical consumption

These specifications are based on Thermorossi’s published Esprit 490 technical information.

How the Esprit 490 works for you

Convert an existing fireplace

If your open fireplace is rarely used because of the inconvenience, heat loss or constant loading of firewood, the Esprit 490 offers an alternative. Pellets are fed automatically into the combustion chamber, giving controlled, programmable heat while keeping the visual appeal of a fireplace. The opening, clearances, flue, combustion-air supply and surrounding materials must be assessed first.

Self-cleaning PelletPower® burner

The advanced PelletPower® burner reduces manual intervention: ashes are removed at the sides and collected in the drawer, giving constant efficiency without interruption or wasted fuel. It is built in super-resistant Incoloy 800HT alloy and can be inspected and removed by the user. Routine maintenance is still required according to the manufacturer’s instructions.

Ductable heating

Hot-air ducting directs heat beyond the room where the insert is installed – useful in larger homes. Thermorossi specifies a maximum individual ducting length of approximately 16 metres. Outlets, duct diameter and routing should be confirmed when designing the system.

Programmable and quiet

A weekly programmer with three ignition periods per day lets you schedule heat around your routine, and the Smart Info function provides information about the appliance’s operation. Thermorossi lists a sound level of approximately 36 dB.

12.5 kg hopper

Pellets are fed automatically according to the selected setting, so there is no need to load logs throughout the day. Consumption is approximately 0.57–2.34 kg per hour, varying with heat output, pellet quality and operating conditions.

How much space can the Esprit 490 heat?

Thermorossi’s technical documentation gives a heatable volume of approximately 280 m³, with 10.5 kW nominal output and 93.3% efficiency at nominal power. Actual performance depends on insulation, ceiling height, glazing, floor plan and climate, and open-plan spaces may behave differently from homes divided into smaller rooms, so treat this as a general guide. For an accurate recommendation, the heat output should be assessed together with the installation space.

Pellet fireplaces are friendly to the environment

These wood pellet fireplaces have a computer system that ensures clean burning, leading to very low ash content and very low carbon emissions, as they are CO2-neutral certified. Burnt pellets produce ash content of about 0.5 to 1 percent. Pellet fireplaces also emit very low levels of toxic chemicals and smoke compared with gas, traditional fossil fuel stoves or wood, and are very affordable compared with other energy sources.

About Thermorossi

Established in a province renowned for its metalworking tradition, Thermorossi has worked successfully in the heating sector for more than 50 years and is one of the leading European manufacturers of wood, pellet and solar heating technologies. Autonomous agencies constantly test its products’ manufacturing features, efficiency and CO emissions, and the quality of the manufacturing process itself.

  • Every phase in-house, from laser-cutting to bending, welding and assembly
  • Complies with the strictest European standards
  • Proprietary technologies such as PelletPower®, Thermocore and TimeXtend® on selected models

Thermorossi Esprit 490 installation

The Esprit 490 requires professional installation with the correct flue, combustion-air supply and clearances – it should not simply be placed into an existing open fireplace. The manufacturer specifies an 80 mm smoke exhaust connection and a minimum draught of 12 Pa, and any hot-air ducting must be designed to Thermorossi’s requirements. Italfire can assist with fireplace selection and professional fireplace installation.

Explore our insert pellet fireplaces or our complete range of pellet fireplaces, or browse pellet fireplaces by category.
