Description
Charnwood Arc 5 Wood Burning Fireplace
The Charnwood Arc 5 is a contemporary fireplace with clean, understated styling and a strong view of the fire.
Designed for both modern and traditional interiors, the Arc 5 combines a simple exterior with Charnwood’s advanced combustion system.
It produces 5 kW of heat, with an output range of 2–7 kW. The Arc 5 is available with either a Low Stand or Store Stand. The Charnwood Arc 5 fireplace ‘low stand’ offers exceptional control and ease of use. This is because of the simple air control mechanism and the ‘cool to the touch’ door handle.
The Arc 5 is slender in it’s styling. This feature works well in tight spaces and corners. Additionally, the Arc features heat shields which come as standard. This design detail allows for closer proximity to combustible materials or items that are more sensitive to heat damage such as glass.
The Charnwood Arc 5 ‘Store Stand’ option is also available. Take a look at the video below to see the Arc 5 in action during tests. The Arc 5 has been rated as a 7KW max stove. This fireplace will heat around 175 m³ of room space.
5 kW Wood Burning Stove
The Charnwood Arc 5 has a 5 kW rated output, with a heat output range of 2–7 kW.
When burning wood, the Arc 5 has a net efficiency of 81%. It accepts logs up to 290 mm (11.5 inches) long.
The Fireplace is designed to provide controllable heat while maintaining a clear view of the flames.
Clean Modern Design
The Arc 5 has pared-back styling that suits a range of interior designs.
Its clean lines work well in modern living spaces while remaining suitable for more traditional fireplace settings.
The stove is constructed from plate steel, cast iron, fire bricks and ceramic glass.
Advanced Combustion System
Charnwood has developed the Arc around a combustion system designed to provide clean burning and low emissions.
The stove uses one single air control, making operation straightforward.
Features include:
- SIA Eco Design Ready
- Cleanburn Airwash Technology
- Quattroflow Air Management System
- Converting grate
- Drop-down throat plate
- Ceramic glass
- Single air control
- DEFRA exemption for burning wood in smoke control areas
The drop-down throat plate allows the chimney to be swept through the stove.

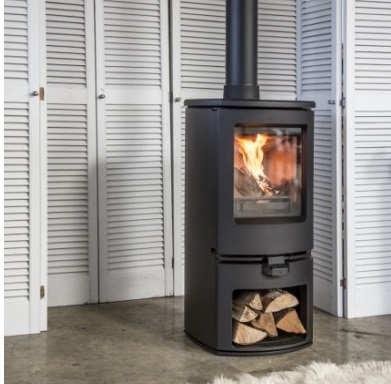

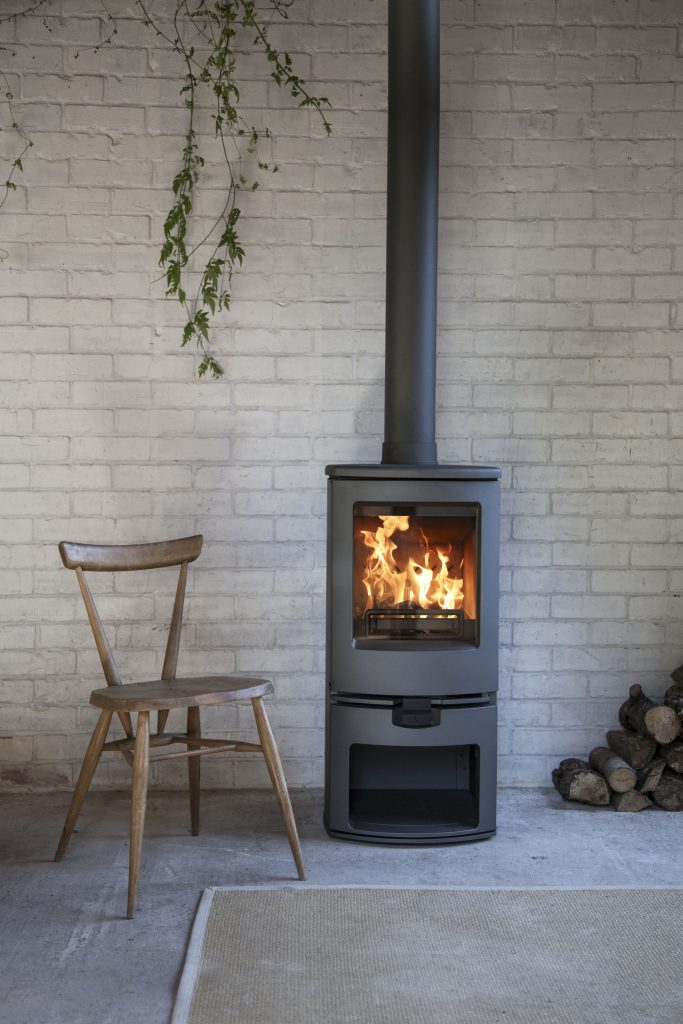

Arc 5 Low Stand or Store Stand
The Charnwood Arc 5 is available in two stand configurations.
The Low Stand gives the stove a lower, more compact appearance. The Store Stand raises the stove and provides an integrated area beneath it.
The Arc 5 Store Stand weighs approximately 150 kg, while the Low Stand version weighs approximately 130 kg.
The Store Stand version is approximately 453 mm wide, with the technical drawing showing a height of approximately 933 mm.
Flexible Flue Options
The Arc 5 has a 125 mm (5 inch) flue outlet, with top or rear flue connection options.
A vertical rear flue adaptor is available as a customisation option. Charnwood also lists a rear heatshield and optional drawer among the available options.
Installation must follow the manufacturer’s requirements and applicable South African installation regulations.
Charnwood Arc 5 for South African Homes
The Arc 5 offers a combination of contemporary styling, controllable heat and a wide view of the fire.
Its 5 kW output makes it a practical option for spaces requiring a moderate heat output, while its simple design allows it to work across different interior styles.
For homeowners looking for a Charnwood wood burning stove in South Africa, the Arc 5 provides a clean-lined alternative to more traditional stove designs.
Charnwood Arc 5 Specifications
| Specification | Details |
|---|---|
| Brand | Charnwood |
| Model | Arc 5 |
| Fuel | Wood / smokeless fuel |
| Rated output | 5 kW |
| Output range | 2–7 kW |
| Net efficiency – wood | 81% |
| Net efficiency – solid fuel | 82% |
| Maximum log length | 290 mm / 11.5″ |
| Flue outlet | Top or rear |
| Flue diameter | 125 mm / 5″ |
| Low Stand weight | 130 kg |
| Store Stand weight | 150 kg |
| Materials | Plate steel, cast iron, fire bricks, ceramic glass |
| Stand options | Low Stand / Store Stand |
| Air control | Single control |
| Air management | Quattroflow |
| Glass technology | Cleanburn Airwash |
| Colour options | Eight colours |
- Eco-design 2022 ready.
- Dimensions – 72cm (h) x 44cm (w) x 45cm (d)
DOWNLOAD SPECIFICATIONS
Charnwood Arc 5 Wood Burning Stove
The Charnwood Arc 5 combines a 5 kW heat output with clean contemporary styling and an advanced combustion system.
Choose between the Low Stand and Store Stand to create the look that best suits your installation.
Contact Italfire for more information about the Charnwood Arc 5 wood burning stove and installation options in South Africa.
Optional extras:
The Arc 5 low stand is Black and comes without the store stand.
There are various colour options for an extra R5000 with a 2-3 week lead-time: Almond, Blue, Brown, Bronze, Green, Gunmetal and Pewter.
